18V Li-ion Cordless FUEL™ Duplex Nailer
The M18 FUEL™ Duplex Nailer revolutionises the assembly of concrete formwork by increasing productivity and optimising ergonomics. By leveraging our nitrogen air spring technology, POWERSTATE™ Brushless motor, and REDLINK™ Intelligence, this nailer delivers the performance to seat nails into all wooden formwork materials at firing rates of up to 4 nails per second.

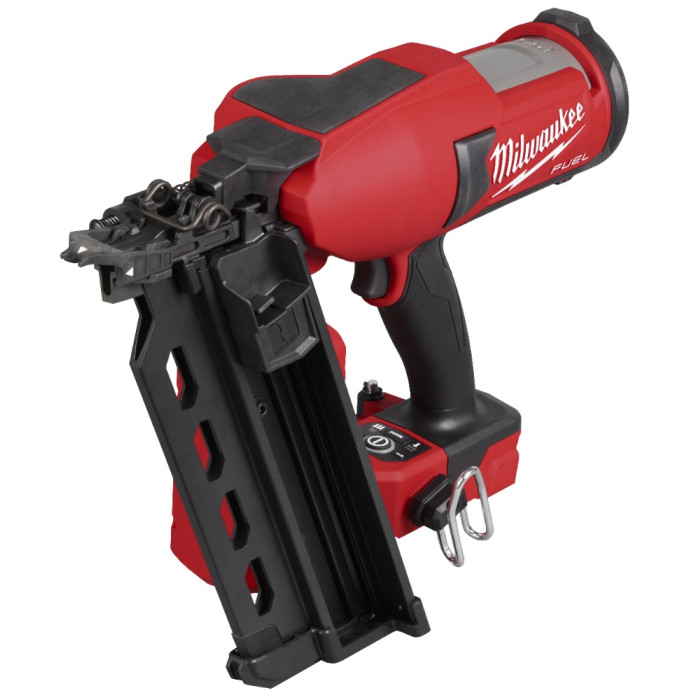

Milwaukee M18FDN0C 18V Li-ion Cordless FUEL™ Duplex Nailer
The M18 FUEL™ Duplex Nailer provides users with maximum productivity and a drastic reduction in muscle effort compared to driving nails with a hammer. This nailer is equipped with userdriven features including tool-free jam clearance and depth of drive adjustment to minimise downtime on the job. The cordless nailer is designed for compatibility with the Milwaukee® Collated Duplex Nails (sold separately) available in two sizes: 8D (57.2mm (2-1/4”) drivable length) & 16D (76.2mm (3”) drivable length). When paired with an M18™ REDLITHIUM™ 5.0Ah Battery, this nailer gives users the ability to sink up to 800 nails per charge.
Includes:
- 1 x M18 FUEL Duplex Nailer (M18FDN0C)
- 1 x Carrying Case
Features:
- Only compatible with Milwaukee® Collated Duplex Nails (MDP8D-2000, MDP16D-2000)
- POWERSTATE™ brushless motor in unison with nitrogen spring mechanism drastically improves productivity compared to hammering
- Fast form assembly compared to driving nails with hammer
- Less muscle effort required compared to driving nails with hammer
- Tool free jam clearing latch
- Tool free depth adjustment
- Up to 800 nails per charge on an M18™ REDLITHIUM™ 5.0Ah Battery
- Fires 4 nails per second
- Belt & rafter hook
- Flattop design to rest tool in inverted orientation
- Nail placement indicator
- LED work light
- Dry Fire Lockout
- Ergonomic handle for use with thick work gloves
Specifications:
- Platform: M18 FUEL™
- Voltage: 18V
- Nail Diameter: 3.3mm (1/8")
- Nail Length (Drivable): 57.2 – 76.2 mm (2-1/4" – 3")
- Nail Length (Total): 73 – 92.1 mm (2-7/8" – 3-5/8")
- Colliation Angle: 21°
- Magazine Capacity: 31 Nails
- Magazine Loading: Bottom
- Nails per Charge (M18B5): Up to 800
- Firing Modes: Sequential & Contact (Bump) Actuation
- Fill Pressure: 110 psi
- Max Fire Rate: 4 Nails/Sec
- Dimensions(L x W x H): 381 x 130 x 315 mm
- Weight: 4.31kg
Warranty:
- 3 Years of Warranty Covered By Milwaukee
| Model Number | M18FDN0C |
|---|---|
| gtin | 4892210235848 |
| Brand | Milwaukee |
