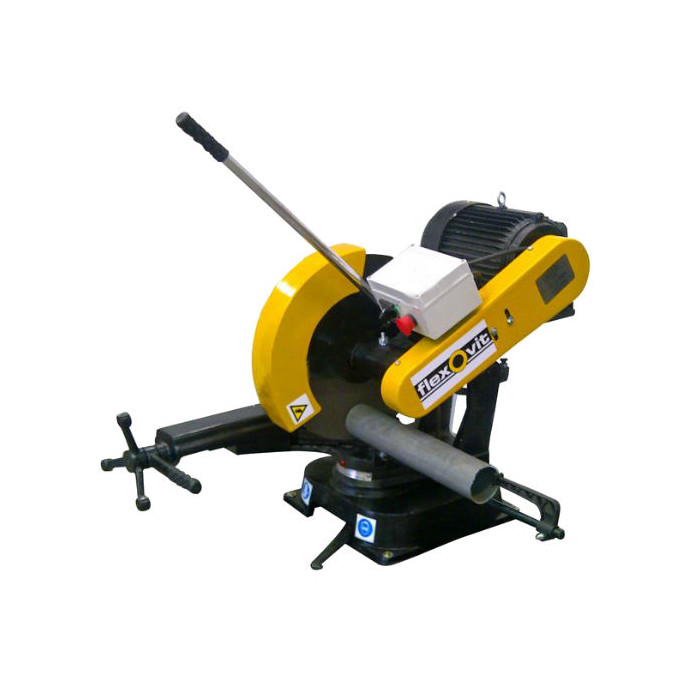

Mitre Cut Off Saw 405mm (16") 4Kw/5.5hp 400A MITRECUT400A

Flexovit 70184646646 Mitre Cut Off Saw 405mm (16") 4Kw/5.5hp 400A MITRECUT400A

Features:

• Powerful 3 phase motor: The 4kW 3 phase motor makes the toughest cutting job easy.
• Quick clamp vice
• Emergency stop button
• Hinged protective guard
• Rotating vice - 90 to 45 deg
• Heavy Duty Construction:
• The cast iron frame is combined with specially machined steels, heavy duty bearings and heavy fabricated steel guards to ensure many years of trouble-free service.

Machine Head:

• The machine head rotates from left to right to enable materials to be cut at angles up to 45 degrees. This design configuration is beneficial in many cutting applications, thus improving productivity. The large rotary seal has 4 fulcrum points allowing for safe and stable left to the right rotation.

Cutting Capacity:

• Up to 110mm sections can be handled easily in most types of steels. The cutting capacity is reduced to 100mm when cutting at 45 degrees.

Drive:

• Dual belt drive for constant power and reliability.

Specifications:

• Max. blade wheel dia: 405mm (16")
• Max. Cutting Depth: 110mm
• Motor: 380V/415V, 50HZ, three phase
• Power 4kW / 5.5HP
• No load speed: 3,400 RPM
• Spindle size: 25.4mm
• Weight: 170kg
• CUTTING CAPACITY for MITRECUT 400a:
  • Round @ 90º: 110mm
  • Round @ 45º: 100mm
  • Square @ 90º: 100mm*100mm
  • Square @ 45º: 90mm*90mm
  • Rectangle (W x H) @ 90º: 125mm*80mm
  • Rectangle (W x H) @ 45º: 100mm*80mm
