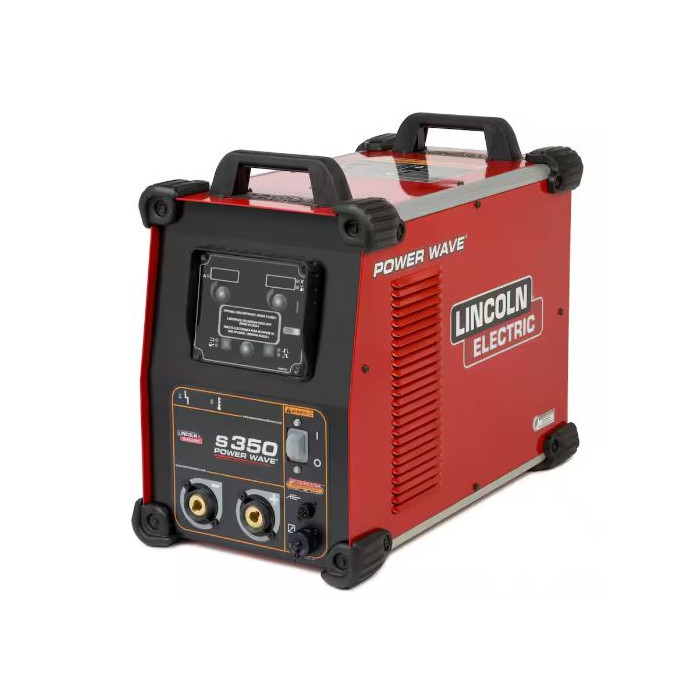

Power Wave® S350 Advanced Process Welder
$18,199.01
SKU
K2823-2
The multi-process Power Wave® S350 is packed with Lincoln Electric performance technology and innovation. Built to be the best in class advanced process welding machine, the Power Wave® S350 features advanced welding waveforms optimized to provide for nearly any application.
Lincoln Electric K2823-2 Power Wave® S350 Advanced Process Welder
Features:
- Modular platform allows for customization to your welding needs. Modules can be stacked directly beneath power source for clean and convenient configuration whether stationary or on a cart.
- All Power Wave® systems come standard with access to Lincoln Electric Power Wave® Manager and Lincoln Electric Checkpoint® Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
- Optional 115V AC duplex power receptacle provides power accessories such as grinders and water coolers.
- Compact and Durable - IP23 rated for harsh environments
- Patented PowerConnect® Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.
- Tribrid® Power Module - Exceptional welding performance with high power factor and efficiency.
- Optional 115V (10A) AC Duplex Auxiliary Power Receptacle - Features patent-pending Surge Blocker™ Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
- Industry leading 5 year warranty
Applications:
- Suitable for semi-automatic applications such as pipe welding, pressure vessels, stainless steel tanks, furniture or automotive
- Suitable for use in automotive, construction, fabrication and aluminium industries
- Ideal for all processes: MMAW, TIG, MIG, pulsed, synergic MIG, FCAW or gouging
Technical Specifications:
- Type - Multi-Process Welder
- Power Rating - 60kVA
- Voltage Rating - 415V/440V/575V/ 3Phase
- Current Rating - 5-350A
- Weight - 46.6kg
- Size - 350A
- Maximum TIG Rod Size - 6.0mm
- Machine Class - Industrial PULSE / STT Inverter Power Source
- Maximum Electrode Size - 5.0mm
- Machine Series - Power Wave®
- Duty Cycle - 350A/31.5/@40%300A/29V@100%
- Welding Process - Pulse MIG, Pulse on Pulse, MIG, Flux-cored, Stick, Lift, TIG DC (STT) (optional)
| Model Number | K2823-2 |
|---|---|
| Brand | Lincoln |
