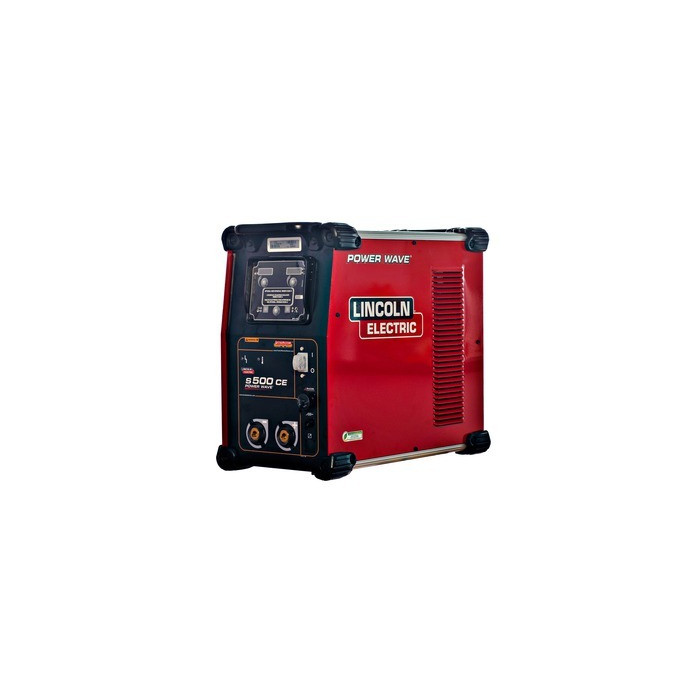

Power Wave S500

Powerful Multi-Process Capability.

Calculate your energy savings!

Please be sure you have Java 1.6.x installed on your machine for the calculator to load.

The multi-process Power Wave® S500 is packed with Lincoln Electric performance technology for welding on thicker materials. It provides an extremely fast arc response, includes over 65 standard welding waveforms for optimized performance on almost any application and efficiently converts input power to reduce operational costs.

• PowerConnect™ Technology (Patent-Pending) - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, three phase. Welding output remains constant through the entire input voltage range.
• Tribrid™ Power Module - Exceptional welding performance with high power factor and efficiency.
• CheckPoint™ and Production Monitoring™ 2.2 – Use your server or our cloud-based server to view and analyze your welding data on almost any device – desktop, laptop, iPhone® or iPad®, Blackberry® and others. Track equipment usage, store weld data, configure fault limits and more.

Features:

• PowerConnect™ Technology (Patent-Pending) - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, three phase.
• Tribrid™ Power Module - Exceptional welding performance with high power factor and efficiency.
• CheckPoint® and Production Monitoring® 2.2 – Use your server or our cloud-based server to view and analyze your welding data on almost any device – desktop, laptop, iPhone® or iPad®, Blackberry® and others.
• Standard 115V (10A) AC Duplex Auxiliary Power Receptacle.
• Durable Case - IP23 rated to withstand harsh environments.

Input Power

• 208/230/380-415/460/575/3/50/60

Processes

• Stick, DC TIG, Pulsed DC TIG, MIG, Pulsed MIG, Flux-Cored

Specifications:

• Input Power: 208/230/380-415/460/575/3/50/60
• Rated Output: 550a/41.5/40%
• Input Current: 3ph/40% - 80/73/41/37/29a3ph/100% - 60/54/30/27/21a
• Output Range: 5-550a Dc
• Dimensions (H X W X D): 22.5 In X 14 In X 24.8 In (571 Mm X 355 Mm X 630 Mm)
• Net Weight: 150 (68 Kg)
