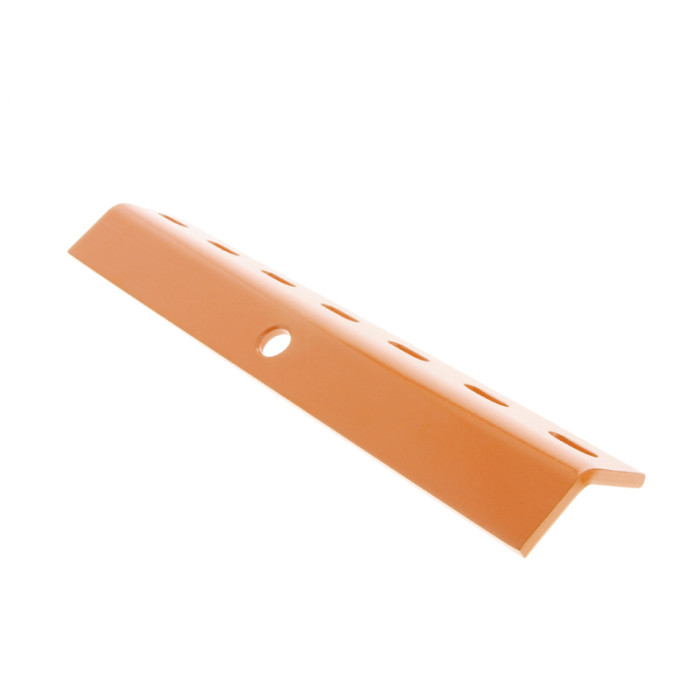

Anchor Tetha V-Bar 280mm Straight

The ProChoice HSTBS280 LINQ Anchor Tetha V-Bar 280mm Straight is a compact temporary roof anchor engineered for extreme workplace situations. Boasting a minimum breaking strength and fall arrest forces of 22kN, the range has been developed to be a durable and efficient temporary roof line anchor system that is affordable and reusable alternative to installation of a permanent purlin style anchor on metal or tile roofs. The 280mm V-Bar is the smaller alternative to the 500mm V-Bar and is rated for up to a 140kg user.

It is important to ensure that the structure to which any LINQ Tetha anchor plate is installed, has sufficient strength (refer to ASNZS 1891.4) to sustain the applied load. Installation should always be conducted by a competent person as described in ASNZS 1891.4.

 PRODUCT FEATURES

• Engineered for extreme workplace situations
• Minimum breaking strength of 22kN
• An affordable temporary and reusable alternative to installation of a permanent purlin style anchor
• Compact design and lightweight materials provide a tried and tested safety solution
• Rated for up to a 140kg user
• Can withstand fall arrest forces up to 22kN
• Can be used as a temporary anchor point in applications along a roof line where no permanent anchor point exists.
• Quick installation and removal. (Installation should always be conducted by a competent person as described in ASNZS 1891.4)
• Provides safe 360° work area
• For use on metal or tile roofs
• 280mm size all-purpose metal roofs
• Conforms to ASNZS 1891.4 requirements
