SeeSnake® microREEL CA (Suitable for CA-350)

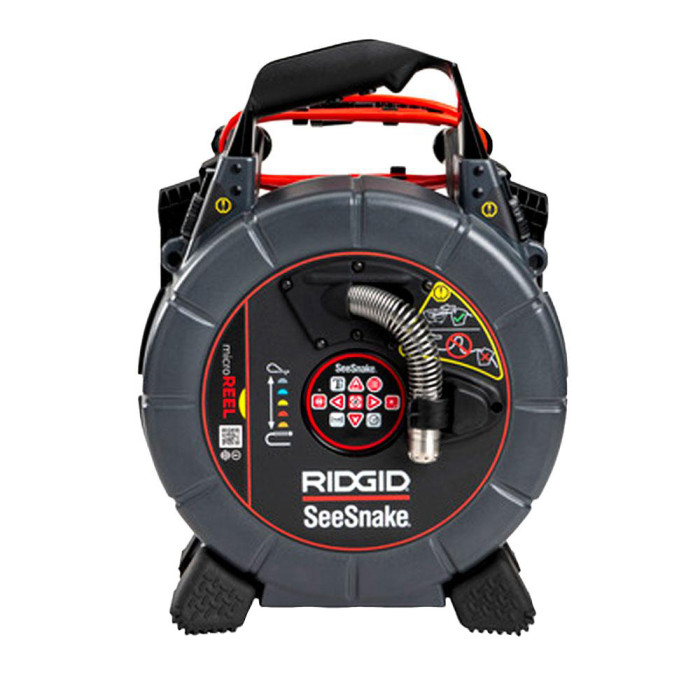

Ridgid 70803 SeeSnake® microREEL CA (Suitable for CA-350)

Includes:

• 1x Camera Reel
• 1x CA-350 Adapter
• 1x Kickstand
• 1x Interconnect Cable
• 1x Ball Guides

Features:

• Already equipped with the micro CA-350 adaptor for inspection and documentation with the micro CA-350 inspection camera (micro CA-350 sold separately).
• The added CA-350 docking handing is designed to easily transfer of equipment from jobsites.
• Mid-flex push cable ideal for small diameter (1 1/2" to 4", 40 to 101 mm) and tight-turn radius inspections up to 100' (30m).
• Hardened stainless steel camera head & spring assembly is durable and reliable for a long service life.
• Built-in kickstand can be used upright for tight spaces, at an angle for added leverage or on four feet to provide stability while pushing or receiving.
• Integrated 512 Hz sonde allows for easy line tracing and locating.
• Use with any SeeSnake monitor or Wi-Fi Hub.

Specifications:

• Length: 22"
• Width: 22"
• Height 13.41"
• Camera Length: 1" / 26 mm
• Camera Diameter: 1" / 25 mm
• Resolution: 640 x 480 Pixels
• Type: Integrated
• Frequency: 512 Hz
• Distance Measurement Type: Integrated Counter with Keypad
• Data Communication: One-Way
• Push Cable Length: 100'
• Push Cable Diameter: 0.27" / 6.7 mm
• Fiberglass Core Diameter: 0.12" / 3 mm
• Minimum Bend Radius: 2.5" / 64 mm
• Pipe Capacity Min: 1.5" / 38.1 mm
• Pipe Capacity Max: 4" / 101.6 mm
• Color: Gray
• Material: Plastic, Stainless Steel
• Shape: Round
• Light Source: LED
• Min Operating Temperature: 14 F / -10 C
• Max Operating Temperature: 122 F / 50 C
• Weight: 30 lbs
