Digital Automotive Multimeter
$199.00
SKU
SCMT70617
Barcode
9311911706174
ABW professional quality automotive multimeter is packed with many features. For testing various aspects of automotive engine electrical and electronic systems and components as well as temperature readings. Computer safe reading with Digital and Bar Graph readout, selectable backlit LCD display with auto polarity, negative indication and auto power off. Dust proof & waterproof to 1 Metre (IP67 Standard).

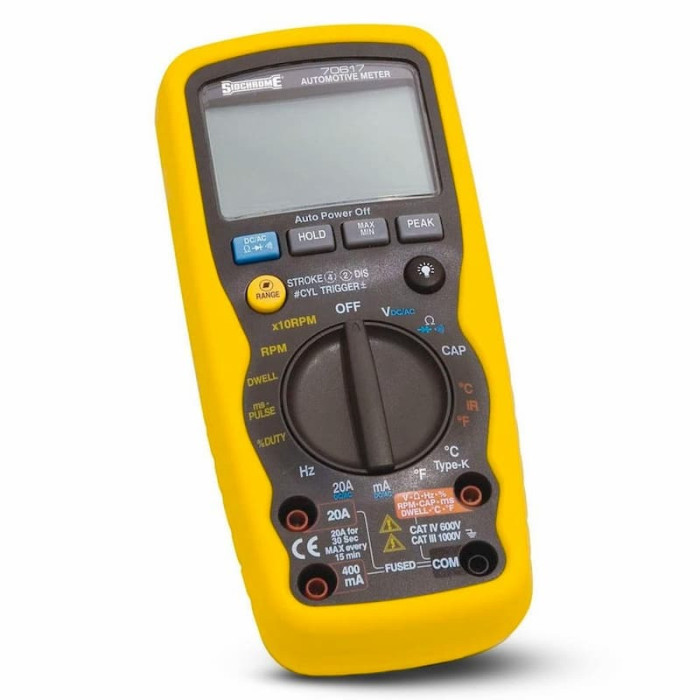

Sidchrome SCMT70617 Digital Automotive Multimeter
Includes:
- Automotive multimeter with built in stand
- Test leads
- Temperature probe
- Inductive RPM clamp
- 9V Battery
- Case with lead holders
- Instruction manual
Features:
- 10Meg OHM impedance - computer safe
- MS Pulse width to test injectors, IAC motors & controls
- Auto/Manual ranging + Bargraph display
- DIS (Distributorless Dual Ignition System) RPM function
- Inductive RPM clamp
- Functions - Volts AC/DC, OHMS, Capacitance, Current AC/DC,
- 20 Amp fused circuit, Diode check, Audible continuity,
- RPM, Duty cycle, Pulse Width, Dwell, Frequency, Temperature.
- Meets CATIII1000V/CATIV600V specifications
- Oversize LCD display 4000 counts with backlight
- Polarity: Automatic, (-) negative polarity indication.
- Low battery indication - Auto Power off
- Data hold & Peak Hold functions
- IP67 Dust proof & waterproof to 1 Meter
Specifications:
- Voltage: 600 Volts AC/DC
- Current: 20 Amps DC
- Polarity: Automatic (-) negative polarity indication
- Diode Test: 1mA typical
- Display: Oversize LCD (4000 counts) with function
- indication and backlight
- Temperature Range: -50° – 250° Celsius
- Dimensions (L x W x H): 182mm x 82mm x 55mm
- Weight: 0.375kg
| Model Number | SCMT70617 |
|---|---|
| gtin | 9311911706174 |
| Brand | Sidchrome |
