C.Scope Signal Clamp 105mm
$869.00
SKU
YIRC-33-8
The C.Scope Signal Clamp allows operators to apply the Generator/ Transmitter signal (from a SGA, SGV, SGA2, SGV2 and MXT2) effectively to any cable. It is an extremely practical way to allow individual cables to be traced even when the cable is in amongst other cables.

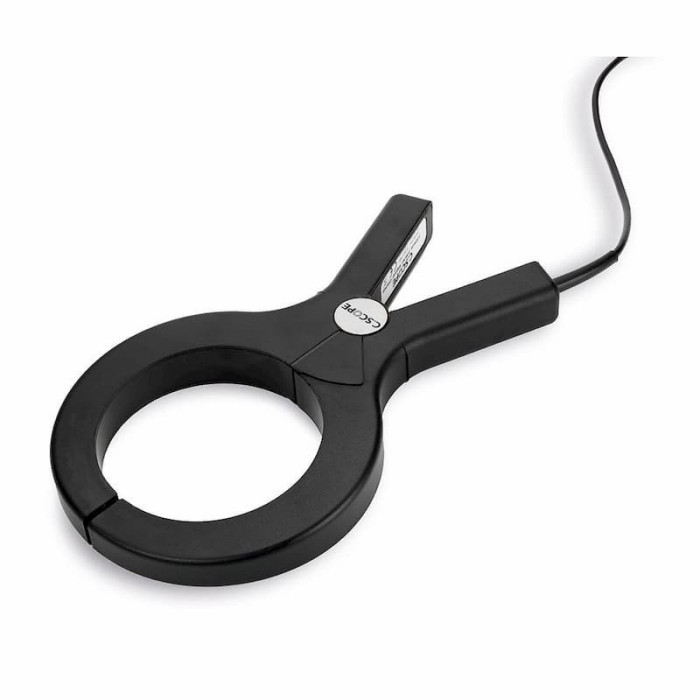

C.Scope Signal Clamp 105mm YIRC-33-8
Features:
- Optimised for transmitting 33kHz signal
- Enables wraparound energisation
- Works with all C.Scope Signal Generators
- 2m lead
- Sturdy, spring-loaded jaws
- Max cable diameter: 105mm
Specifications:
- Construction: Toroidal induction ring housed in robust plastic Spring loaded jaws
- Frequency: Tuned for optimum use with 33kHz Signal Generators/ Transmitters
- Dimensions: 270 x 160 x 28 mm (10.6” x 6.3” x 1.1”)
- Lead lengths: 2 m (6’6.7”)
- Compatibility: Maximum cable diameter 105 mm (4.1”). Suitable for use with all C.Scope Signal Generators and Transmitters
- Safety: Built to conform to BSEN61010-1:1993 and BSEN 61010-2-032:1995
- IP rating: 54
| Model Number | YIRC-33-8 |
|---|---|
| Brand | Topcon |
