SPEEDTEC 200C 200A Multi Process MIG Welder
The SPEEDTEC 200C represent Lincoln Electric s latest generation of state of the art inverter based single phase compact MIG machines. Lincoln Electric has constructed a fully professional machine packed with features into a small compact housing with a portable low weight. These features make the SPEEDTEC 200C extremely versatile.

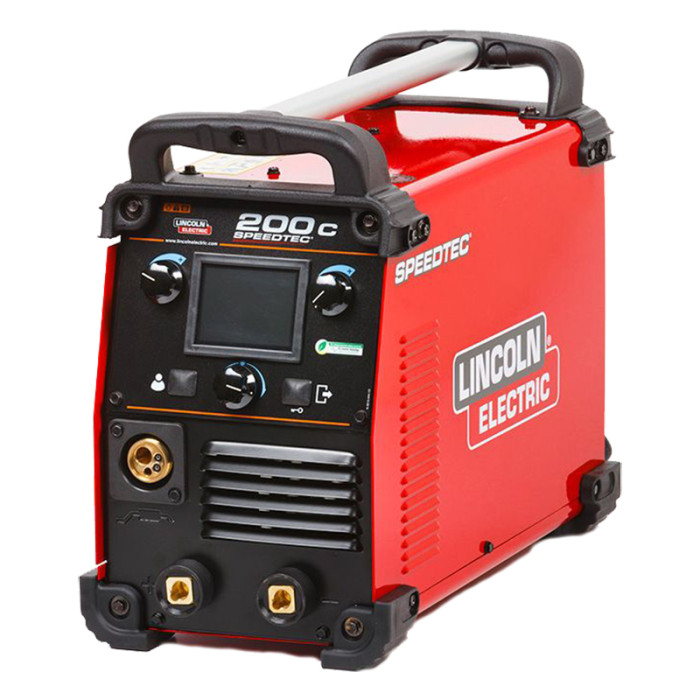

Lincoln Electric K14099-2 SPEEDTEC 200C 200A Multi Process MIG Welder
The SPEEDTEC® 200C has been equipped with Power Factor Correction (PFC), a feature which supports high output welding current from a single phase 230V1Ph 50/60Hz supply. PFC bring many benefits; for the same input current almost 30% more output can be obtained, allowing the use of a long (e.g. 50m) primary extension cable thus reducing energy demands and costs. In addition PFC reduces the power dissipation on input cables by up to 50% hence reducing energy costs. The Perfect Sinusoidal input current waveform reduces harmonics and allows compliance with the latest European standard EN 61000-3-12. The SPEEDTEC® 200C is a real “Green Initiative” welding machine.
Features:
- Innovative, Portable and Lightweight, Anyplace, Anywhere.
- More Welding Power, Energy and Cost savings, Generator Compatible, Safe.
- Icon control colour TFT Interface screen
- Robust, Reliable and Professional
Specifications:
- Input power - 230/1/50/60
- Rated output -
- 200A/24V@25%
- 110A/19.5V@100%
- Input current - 16A
- Output range - 20-200a
- Solid wire size range - 0.6-1.0 mm
- Cored wire size range - 0.9-1.1 mm
- Wire feed speed range - 1-15 m/min
- Dimensions (h x w x d) - 396 mm x 246 mm x 527 mm
- Net weight - 17.2 kg
| Model Number | K14099-2 |
|---|---|
| Brand | Lincoln |
