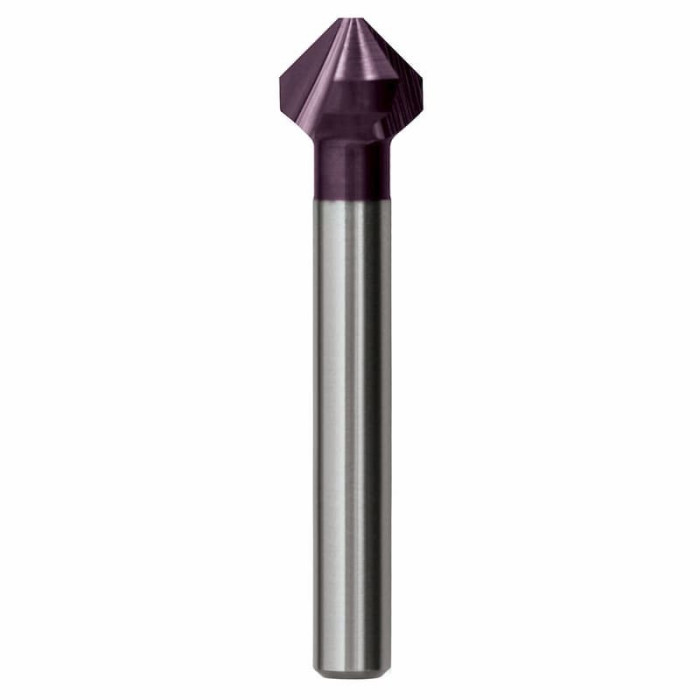

Countersink Bit 10.4mm x 50mm 90° Three Flute DIN
$60.90
SKU
C1081040
Barcode
9311963439273
Three Flute Countersink 90°, DIN 335, UNI. Countersinking / Counterboring screw holes for Countersunk screws acc. to DIN 963, 964, 965, 966, 7513, 7516. For Countersunk screws acc. to ISO 2009, 2010, 7046-1, 7046-2, 7047. Chamfering of tapping holes. For use in machine applications. Type N - For non-ferrous, Type UNI - For difficult to machine materials.
Sutton Tools C1081040 Countersink Bit 10.4mm x 50mm 90° Three Flute DIN
Features:
- Three Flute Countersink 90°, DIN 335, UNI
- Countersinking / Counterboring screw holes for Countersunk screws acc. to DIN 963, 964, 965, 966, 7513, 7516
- For Countersunk screws acc. to ISO 2009, 2010, 7046-1, 7046-2, 7047
- Chamfering of tapping holes
- For use in machine applications. Type N - For non-ferrous, Type UNI - For difficult to machine materials
Specifications:
- Sizes:
- d1 (mm) - 10.4mm
- d2 - 6mm
- l1 - 50mm
- Designation - UNI
- Material - HSS Co
- Finish - TiAlN
- Shank Tolerance - h9
- Standard - DIN 335
- Point Type - 90°
| Model Number | C1081040 |
|---|---|
| gtin | 9311963439273 |
| Brand | Sutton |
