Countersink Bit 6.3mm x 45mm 90° Three Flute DIN
$56.90
SKU
C1080630
Barcode
9311963439211
Three Flute Countersink 90°, DIN 335, UNI. Countersinking / Counterboring screw holes for Countersunk screws acc. to DIN 963, 964, 965, 966, 7513, 7516. For Countersunk screws acc. to ISO 2009, 2010, 7046-1, 7046-2, 7047. Chamfering of tapping holes. For use in machine applications. Type N - For non-ferrous, Type UNI - For difficult to machine materials.

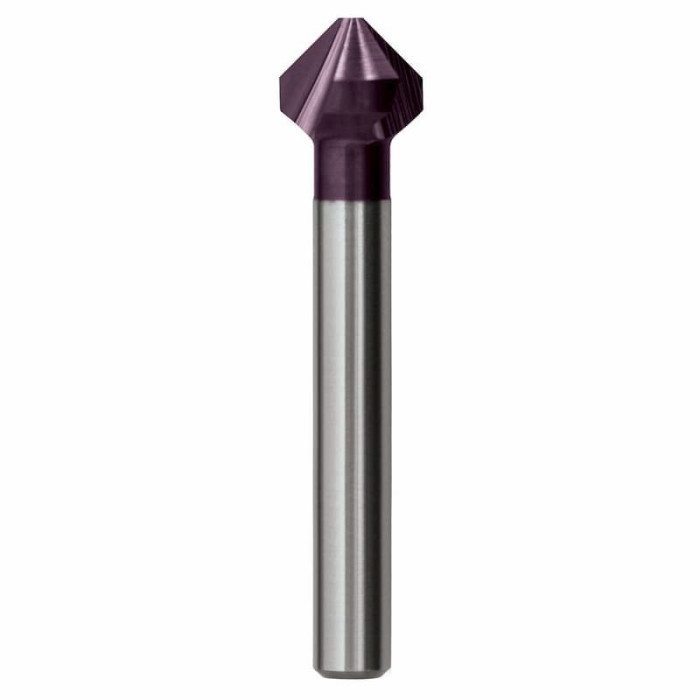

Sutton Tools C1080630 Countersink Bit 6.3mm x 45mm 90° Three Flute DIN
Features:
- Three Flute Countersink 90°, DIN 335, UNI
- Countersinking / Counterboring screw holes for Countersunk screws acc. to DIN 963, 964, 965, 966, 7513, 7516
- For Countersunk screws acc. to ISO 2009, 2010, 7046-1, 7046-2, 7047
- Chamfering of tapping holes
- For use in machine applications. Type N - For non-ferrous, Type UNI - For difficult to machine materials
Specifications:
- Sizes:
- d1 (mm) - 6.3mm
- d2 - 5mm
- l1 - 45mm
- Designation - UNI
- Material - HSS Co
- Finish - TiAlN
- Shank Tolerance - h9
- Standard - DIN 335
- Point Type - 90°
| Model Number | C1080630 |
|---|---|
| gtin | 9311963439211 |
| Brand | Sutton |
