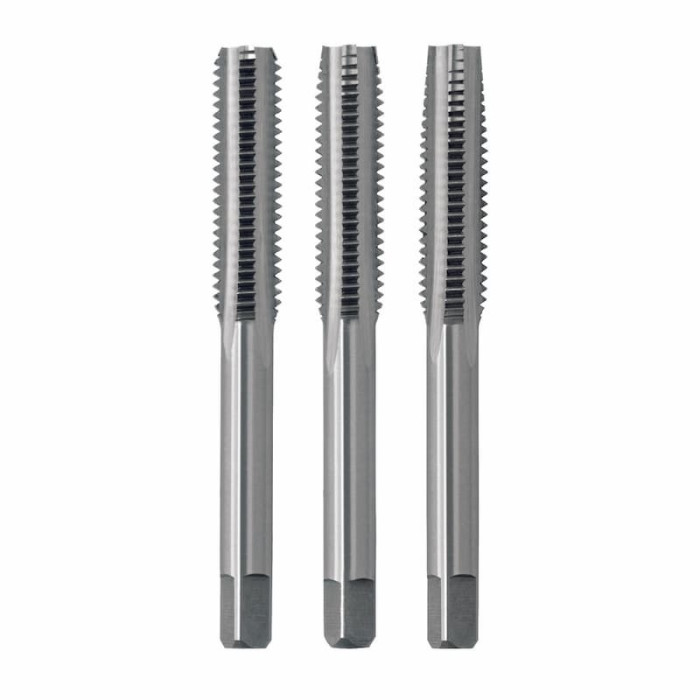

Hand Tap 5/8" x 18TPI UNF Carbon Set - 3 Piece
$88.90
SKU
M2231588
Barcode
9311963027159
Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter. Taper lead: suitable for starting a thread. Intermediate lead: used after a taper lead and are suitable for through holes. Bottoming lead: used after a taper lead and are suitable for blind holes. Square shank for use with a suitable tap wrench to drive the tap.
Sutton Tools M2231588 Hand Tap 5/8" x 18TPI UNF Carbon Set - 3 Piece
Features:
- Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
- Taper lead: suitable for starting a thread. Intermediate lead: used after a taper lead and are suitable for through holes. Bottoming lead: used after a taper lead and are suitable for blind holes
- Square shank for use with a suitable tap wrench to drive the tap
- Made from tungsten chrome alloy
- Bright finish for general purpose applications, non-ferrous metals & plastics
Specifications:
- TPI - 18
- Drill ∅ - 14.5mm
- Size - 5/8"
- Designation - N
- Material - TCA
- Finish - Brt
- Max Cut Depth - 1.5xD
- Shank Form - A
- x - als
- Type - Straight Flute
- Thread Form - UNF
- Lead - Set
| Model Number | M2231588 |
|---|---|
| gtin | 9311963027159 |
| Brand | Sutton |
