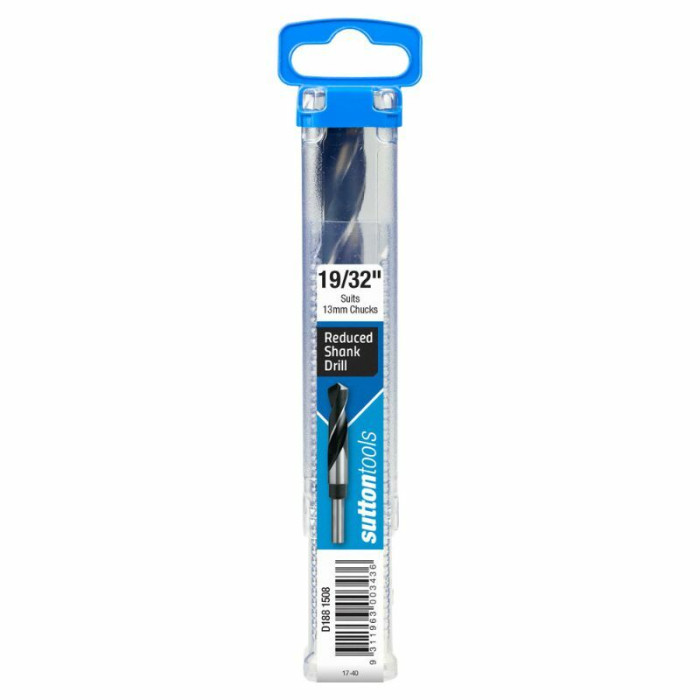

Drill Reduced Shank 19/32" x 12.5mm Shank

Sutton Tools D1881508 Drill Reduced Shank 19/32" x 12.5mm Shank

Features:

• Common Length 6" (152mm) overall length with a 3-3/8" (86mm) flute length
• Reduced shanks suit 13mm drill chucks
• 118° standard point for general purpose applications
• Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
• Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Specifications:

• Designation - N
• Material - HSS
• Finish - Blu
• Max Cut Depth - 5xD
• Shank Form - A
• Helix Angle - R30
• x - als
• Point Tolerance - h8
• Point Angle - 118°
• Point Form - Form A
• Cutting Edge - sul
• Standard - Sutton
• Size -
  • d1 - 15.08mm (19/32")
  • l1 - 152mm
  • l2 - 86mm
  • d2 - 12.5mm
