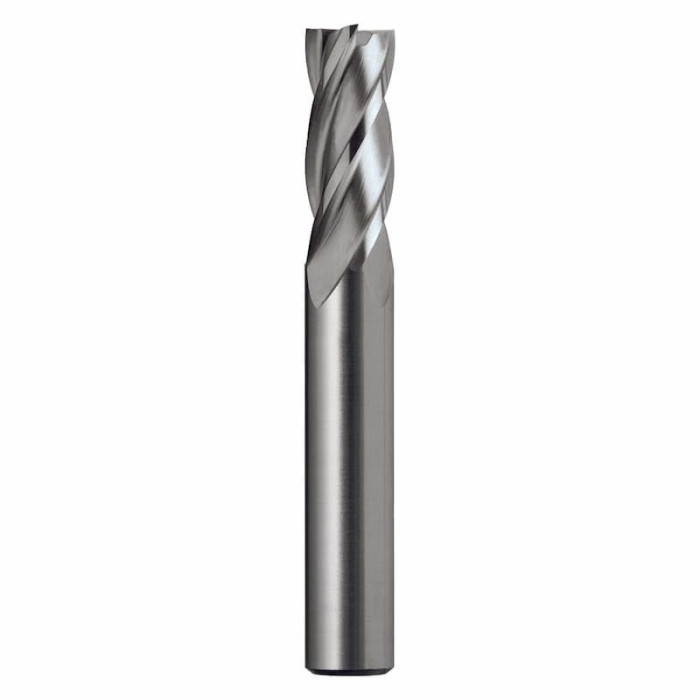

Endmill Drill Bit 1.5mm x 50mm 4-Flute R30 N Regular

Sutton Tools E1250150 Endmill Drill Bit 1.5mm x 50mm 4-Flute R30 N Regular

Features:

• 4 Flute Endmill R30 N
• Suitable for materials up to 1000 N/mm2
• TiCN for longer tool life

Specifications:

• Size:
  • d1 - 1.5mm
  • l1 - 50mm
  • l2 - 3mm
  • d2 - 6mm
  • z - 4mm
• Designation - N
• Material - HSS Co.8
• Finish - Brt
• Shank Form - A
• Helix Angle - R30
• Point Tolerance - k9
• Shank Tolerance - h6
• Point Form - Square End
• Type - N (finishing)
• Standard - JIS
