Jobber Drill 3.26mm x 70mm Silver Bullet
$6.60
SKU
D1010326
Barcode
9311963003078
Sutton Tools Silver Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminium, brass, wood & plastics.

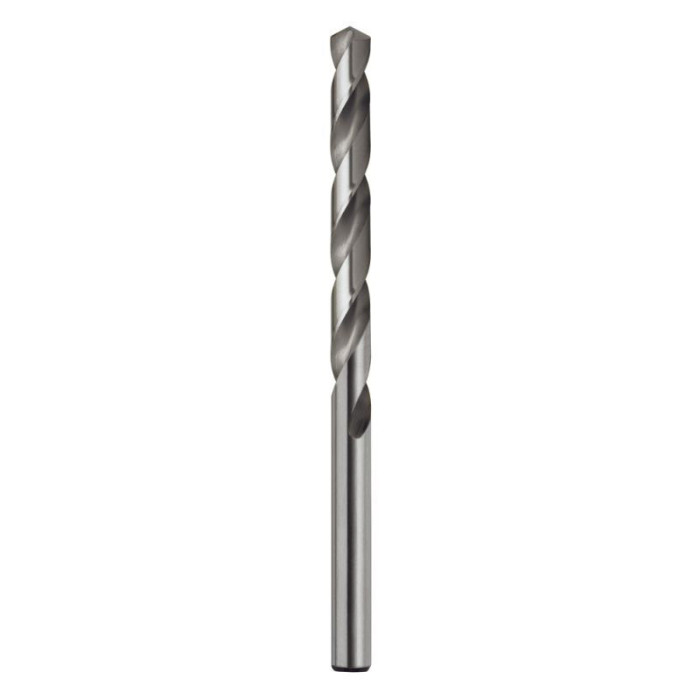

Sutton Tools D1010326 Jobber Drill 3.26mm x 70mm Silver Bullet
Features:
- 118° standard point for general purpose applications
- Precision engineered parallel shank for accurate hole size
- Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
- Bright finish for general purpose applications, non-ferrous metals & plastics
Specifications:
- Size -
- d1 - 3.26mm
- l1 - 70mm
- l2 - 41mm
- Designation - N
- Material - HSS
- Finish - Brt
- Max Cut Depth - 5xD
- Shank Form - A
- Helix Angle - R30
- x - als
- Point Tolerance - h8
- Point Angle - 118°
- Point Form - Form A
- Cutting Edges - ul
- Standard - ANSI B94-11 / DIN338
| Model Number | D1010326 |
|---|---|
| gtin | 9311963003078 |
| Brand | Sutton |
