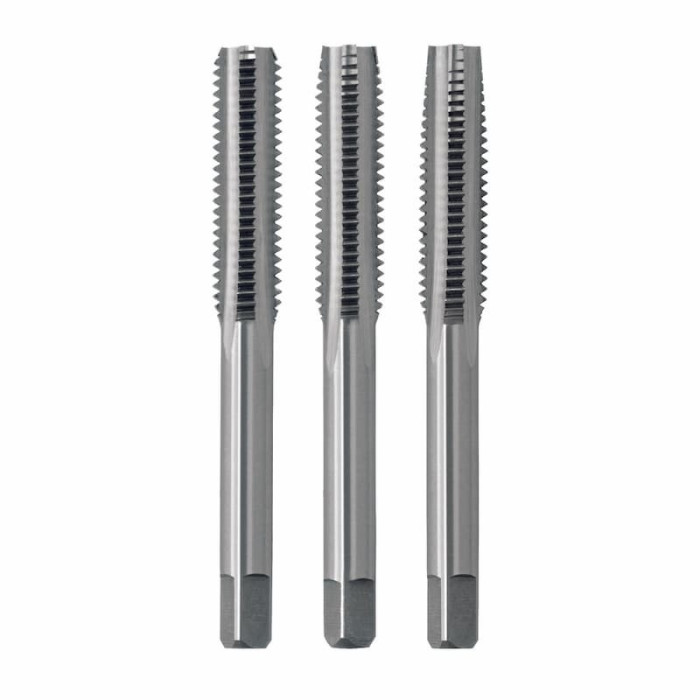

Hand Tap 5/8" x 11TPI UNC Set - 3 Piece
$86.90
SKU
M2191588
Barcode
9311963027142
Straight Flutes suitable for through hole tapping up to 1-1/2" x diameter. Taper lead: suitable for starting a thread. Intermediate lead: used after a taper lead and are suitable for through holes. Bottoming lead: used after a taper lead and are suitable for blind holes. Square shank for use with a suitable tap wrench to drive the tap.
Sutton Tools M2191588 Hand Tap 5/8" x 11TPI UNC Set - 3 Piece
Features:
- Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
- Taper lead: suitable for starting a thread. Intermediate lead: used after a taper lead and are suitable for through holes. Bottoming lead: used after a taper lead and are suitable for blind holes
- Square shank for use with a suitable tap wrench to drive the tap
- Made from tungsten chrome alloy
- Bright finish for general purpose applications, non-ferrous metals & plastics
Specifications:
- TPI - 11
- Drill Ø - 13.5mm
- Size - 5/8"
- Designation - N
- Material - TCA
- Finish - Brt
- Max Cut Depth - 1.5xD
- Shank Form - A
- x - als
- Type - Straight Flute
- Thread Form - UNC
- Lead - Set
| Model Number | M2191588 |
|---|---|
| gtin | 9311963027142 |
| Brand | Sutton |
