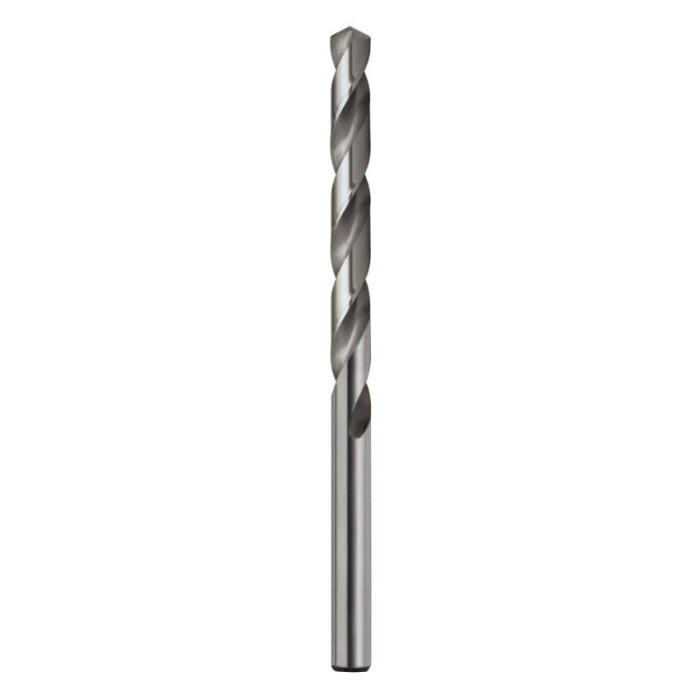

Jobber Drill 7/16" x 140mm Silver Bullet
$22.90
SKU
D1011111
Barcode
9311963000664
Sutton Tools Silver Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminium, brass, wood & plastics.
Sutton Tools D1011111 Jobber Drill 7/16" x 140mm Silver Bullet
Features:
- 118° standard point for general purpose applications
- Precision engineered parallel shank for accurate hole size
- Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
- Bright finish for general purpose applications, non-ferrous metals & plastics
Specifications:
- Size -
- d1 - 11.11mm
- l1 - 140mm
- l2 - 103mm
- Designation - N
- Material - HSS
- Finish - Brt
- Max Cut Depth - 5xD
- Shank Form - A
- Helix Angle - R30
- x - als
- Point Tolerance - h8
- Point Angle - 118°
- Point Form - Form A
- Cutting Edges - ul
- Standard - ANSI B94-11 / DIN338
| Model Number | D1011111 |
|---|---|
| gtin | 9311963000664 |
| Brand | Sutton |
