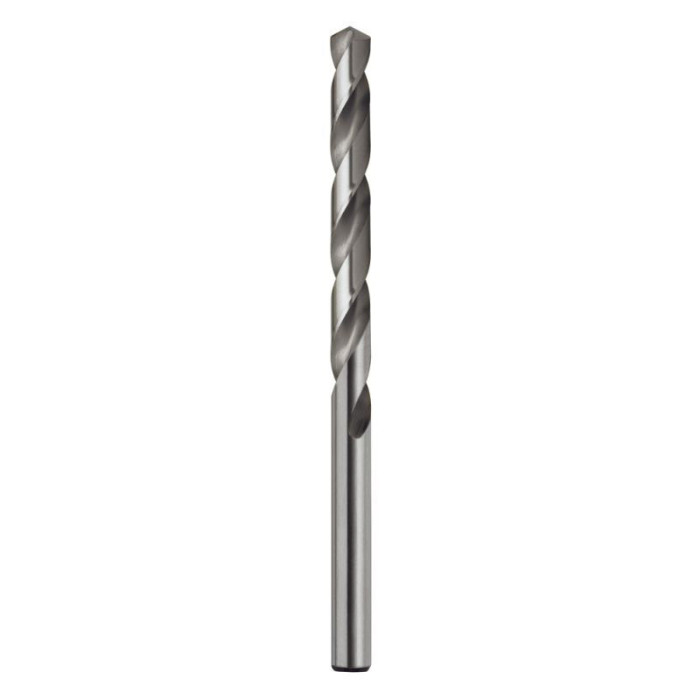

Jobber Drill 25/64" x 130mm Silver Bullet
$20.90
SKU
D1010992
Barcode
9311963001203
Sutton Tools Silver Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminium, brass, wood & plastics.
Sutton Tools D1010992 Jobber Drill 25/64" x 130mm Silver Bullet
Features:
- 118° standard point for general purpose applications
- Precision engineered parallel shank for accurate hole size
- Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
- Bright finish for general purpose applications, non-ferrous metals & plastics
Specifications:
- Size -
- d1 - 9.92mm
- l1 - 130mm
- l2 - 95mm
- Designation - N
- Material - HSS
- Finish - Brt
- Max Cut Depth - 5xD
- Shank Form - A
- Helix Angle - R30
- x - als
- Point Tolerance - h8
- Point Angle - 118°
- Point Form - Form A
- Cutting Edges - ul
- Standard - ANSI B94-11 / DIN338
| Model Number | D1010992 |
|---|---|
| gtin | 9311963001203 |
| Brand | Sutton |
