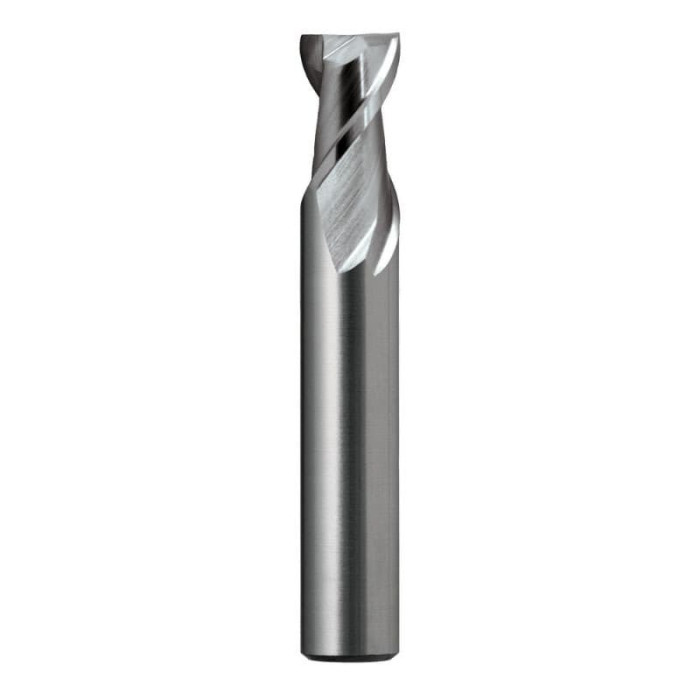

Drill Bit Regular 10mm x 75mm R30 N 2-Flute Slot
$58.00
SKU
E1001000
Barcode
9311963194677
Sutton Tools Slot Drills are a 2-Flute design made from durable HSS-Co (High Speed Steel Cobalt) and feature a screwed shank. They are suitable for general milling of slots and cavity applications in soft steels and non-ferrous metals up 1000 N/mm².
Sutton Tools E1001000 Drill Bit Regular 10 x 75mm R30 N 2-Flute Slot
Features:
- 2 Flute Slot Drill R30 N
- Suitable for materials up to 1000 N/mm2
- For soft steels & non-ferrous material
Specifications:
- Size -
- d1 - 10mm
- l1 - 75mm
- l2 - 25mm
- d2 - 10mm
- z - 2mm
- Designation - N
- Material - HSS Co.8
- Finish - Brt
- Shank Form - A
- Helix Angle - R30
- Point Tolerance - e8
- Shank Tolerance - h6
- Point Form - Square End
- Type - N (finishing)
- Standard - JIS
| Model Number | E1001000 |
|---|---|
| gtin | 9311963194677 |
| Brand | Sutton |
