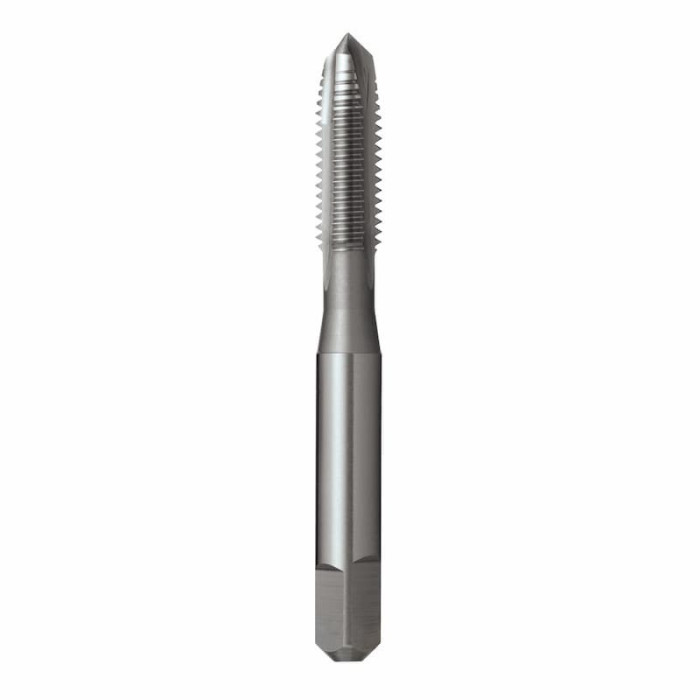

Spiral Point (Gun) Tap M8 x 72mm HSS
$35.90
SKU
T3930800
Barcode
9311963072579
General purpose use. Suitable for materials up to 1000N/mm2. Through holes. Depths up to approx. 3 x d1.
Sutton Tools T3930800 Spiral Point (Gun) Tap M8 x 72mm HSS
Features:
- General purpose use
- Suitable for materials up to 1000N/mm2
- Through holes
- Depths up to approx. 3 x d1
Specifications:
- Size -
- d1 - M8
- Limit - ISO 2 / 6H
- l1 - 72mm
- l2 - 22mm
- d2 - 8mm
- sq - 6.3mm
- l4 - 9mm
- z - 3mm
- Drill Ø - 6.8mm
- Pitch - 1.25mm
- Designation - N
- Material - HSSE V3
- Finish - Brt
- Max Cut Depth - 3xD
- Shank Form - A
- x - als
- Type - Spiral Point (Gun)
- Standard - ISO529
- Thread Form - M
- Nut Tolerance - ISO 2 / 6H
- Lead - Form B / 4.5 x P
| Model Number | T3930800 |
|---|---|
| gtin | 9311963072579 |
| Brand | Sutton |
