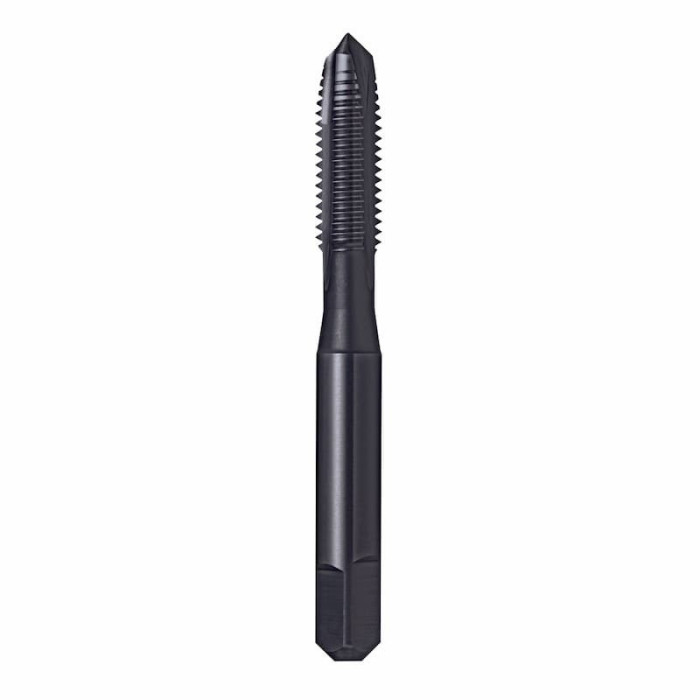

Tap Spiral Point (Gun) M3 x 0.50 HSS

Sutton Tools T3940300 Tap Spiral Point (Gun) M3 x 0.50 HSS

Features:

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through holes
• Depths up to approx. 3 x d1

Specifications:

• Size -
  • d1 - M3
  • Limit - ISO 2/6H
  • l1 - 48mm
  • l2 - 11mm
  • d2 - 3.15mm
  • sq - 2.5mm
  • l4 - 5mm
  • z - 3mm
  • Drill Ø - 2.5mm
  • Pitch - 0.50
• Designation - N
• Material - HSSE V3
• Finish - Blu
• Max Cut Depth - 3xD
• Shank Form - A
• x - als
• Type - Spiral Point (Gun)
• Standard - ISO529
• Thread Form - M
• Nut Tolerance - ISO 2 / 6H
• Lead - Form B / 4.5 x P
