Spiral Point (Gun) Tap M12 x 89mm HSS
$72.90
SKU
T3931200
Barcode
9311963071923
General purpose use. Suitable for materials up to 1000N/mm2. Through holes. Depths up to approx. 3 x d1.

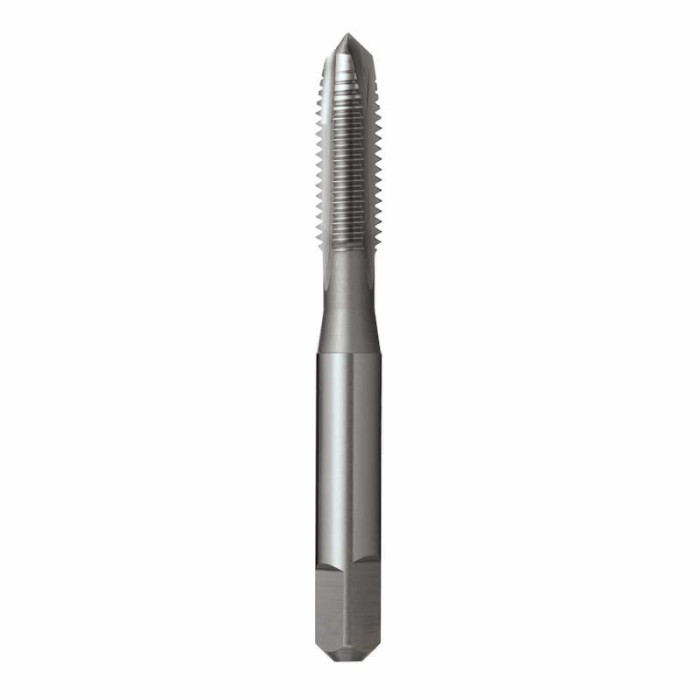

Sutton Tools T3931200 Spiral Point (Gun) Tap M12 x 89mm HSS
Features:
- General purpose use
- Suitable for materials up to 1000N/mm2
- Through holes
- Depths up to approx. 3 x d1
Specifications:
- Size -
- d1 - M12
- Limit - ISO 2 / 6H
- l1 - 89mm
- l2 - 29mm
- d2 - 9mm
- sq - 7.1mm
- l4 - 10mm
- z - 3mm
- Drill Ø - 10.2mm
- Pitch - 1.75mm
- Designation - N
- Material - HSSE V3
- Finish - Brt
- Max Cut Depth - 3xD
- Shank Form - A
- x - als
- Type - Spiral Point (Gun)
- Standard - ISO529
- Thread Form - M
- Nut Tolerance - ISO 2 / 6H
- Lead - Form B / 4.5 x P
| Model Number | T3931200 |
|---|---|
| gtin | 9311963071923 |
| Brand | Sutton |
