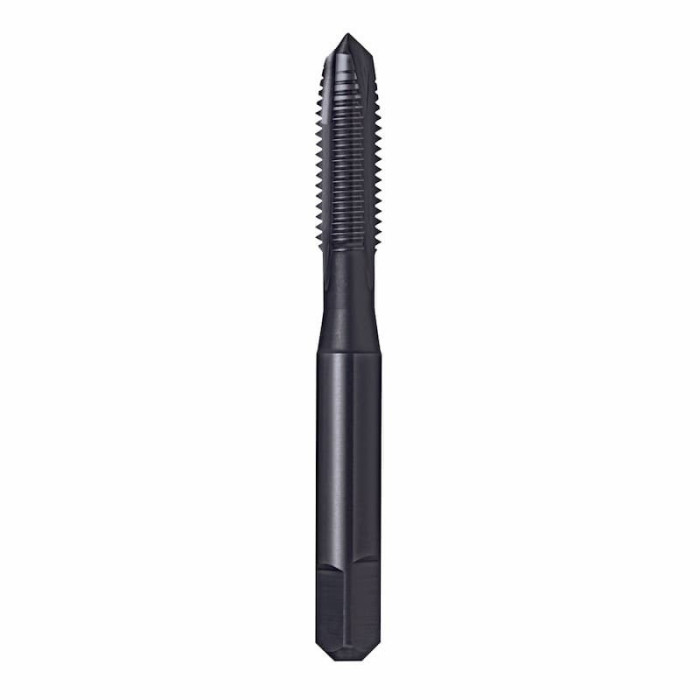

Tap Spiral Point (Gun) M16 x 2.00 HSS
$119.00
SKU
T3941600
Barcode
9311963005768
General purpose use. Suitable for materials up to 1000N/mm2. Through holes. Depths up to approx. 3 x d1.
Sutton Tools T3941600 Tap Spiral Point (Gun) M16 x 2.00 HSS
Features:
- General purpose use
- Suitable for materials up to 1000N/mm2
- Through holes
- Depths up to approx. 3 x d1
Specifications:
- Size -
- d1 - M16
- Limit - ISO 2/6H
- l1 - 102mm
- l2 - 32mm
- d2 - 12.5mm
- sq - 10mm
- l4 - 13mm
- z - 3mm
- Drill Ø - 14mm
- Pitch - 2.00
- Designation - N
- Material - HSSE V3
- Finish - Blu
- Max Cut Depth - 3xD
- Shank Form - A
- x - als
- Type - Spiral Point (Gun)
- Standard - ISO529
- Thread Form - M
- Nut Tolerance - ISO 2 / 6H
- Lead - Form B / 4.5 x P
| Model Number | T3941600 |
|---|---|
| gtin | 9311963005768 |
| Brand | Sutton |
