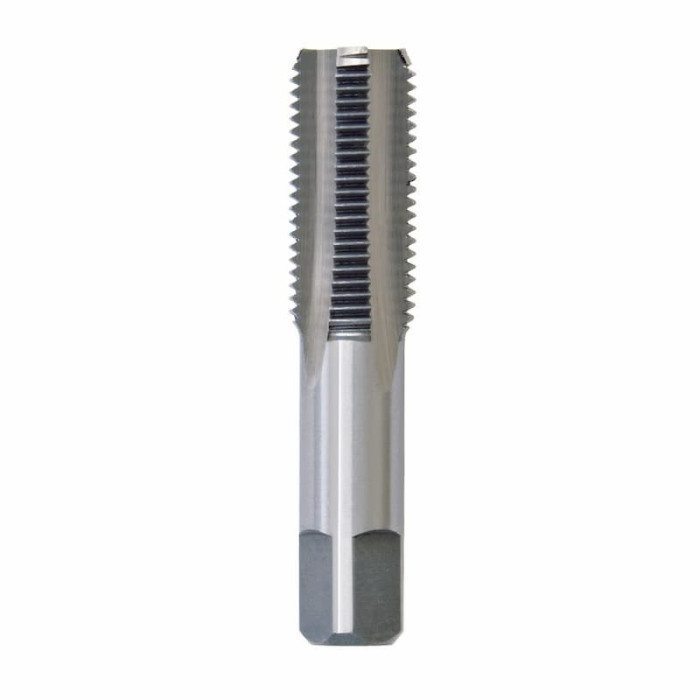

Hand Tap 1/2" x 14TPI Pipe NPT
$77.90
SKU
M2452134
Barcode
9311963027098
Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical. Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping. Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.
Sutton Tools M2452134 Hand Tap 1/2" x 14TPI Pipe NPT
Features:
- Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
- Bottoming lead: used after a taper lead tap and are suitable for creating threads close to the bottom of blind holes
- Square shank for use with a suitable tap wrench to drive the tap
- Made from tungsten chrome alloy
- Bright finish for general purpose applications, non-ferrous metals & plastics
Specifications:
- TPI - 14
- Drill ∅ - 18mm
- Size - 1/2"
- Designation - N
- Material - TCA
- Finish - Brt
- Max Cut Depth - 1.5xD
- Shank Form - A
- x - als
- Type - Taper
- Thread Form - NPT
- Lead - Taper
| Model Number | M2452134 |
|---|---|
| gtin | 9311963027098 |
| Brand | Sutton |
