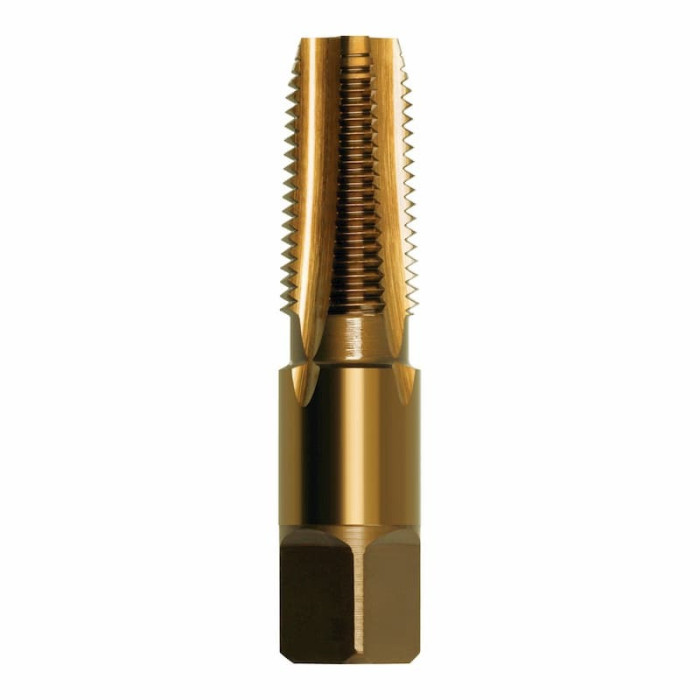

Straight Flute Tap 3/8" x 18TPI NPT Bottoming HSS
$159.01
SKU
T4871715
Barcode
9311963009728
Metric straight flute taps are general purpose taps designed for cutting threads in pre-drilled holes. They can be used in cutting threads in through or blind holes. A thread is started using a taper tap with a subtle diameter transition for minimal torque requirement. An intermediate tap is then used to complete the thread and then a bottoming tap is used for finishing threads, especially in blind holes. Straight flute taps are available in various metric standard sizes and thread forms.
Sutton Tools T4871715 Straight Flute Tap 3/8" x 18TPI NPT Bottoming HSS
Features:
- General purpose use, materials up to approx. 1000 N/mm2.
- Suitable for both hand and machine operations.
- Taper pipe reamer recommended prior to tapping.
Specifications:
- Size -
- d1 - 3/8"
- l1 - 65mm
- l2 - 27mm
- d2 - 17.78mm
- sq - 13.49mm
- l4 - 12.7mm
- z - 4mm
- Drill Ø - 14mm
- TPI - 18
- Designation - N
- Material - HSS
- Finish - Colour Temp
- Max Cut Depth - 1.5xD
- Shank Form - A
- x - als
- Type - Taper
- Standard - ANSI B94-9
- Thread Form - NPT
- Nut Tolerance - ANSI B1.20.1
- Lead - Bottoming
| Model Number | T4871715 |
|---|---|
| gtin | 9311963009728 |
| Brand | Sutton |
