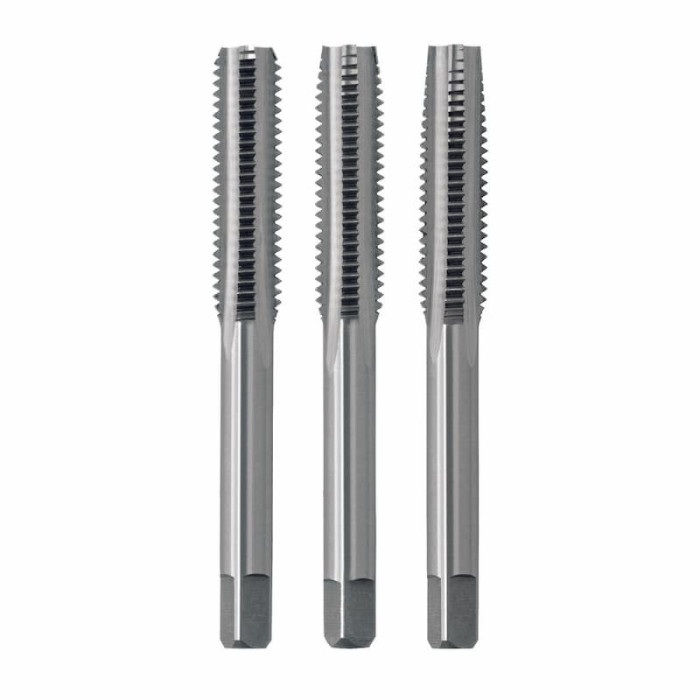

Hand Tap 5/16" x 18TPI UNC Set - 3 Piece
$36.91
SKU
M2190794
Barcode
9311963020242
Straight Flutes suitable for through hole tapping up to 1-1/2" x diameter. Taper lead: suitable for starting a thread. Intermediate lead: used after a taper lead and are suitable for through holes. Bottoming lead: used after a taper lead and are suitable for blind holes. Square shank for use with a suitable tap wrench to drive the tap.
Sutton Tools M2190794 Hand Tap 5/16" x 18TPI UNC Set - 3 Piece
Features:
- Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
- Taper lead: suitable for starting a thread. Intermediate lead: used after a taper lead and are suitable for through holes. Bottoming lead: used after a taper lead and are suitable for blind holes
- Square shank for use with a suitable tap wrench to drive the tap
- Made from tungsten chrome alloy
- Bright finish for general purpose applications, non-ferrous metals & plastics
Specifications:
- TPI - 18
- Drill Ø - 6.6mm
- Size - 5/16"
- Designation - N
- Material - TCA
- Finish - Brt
- Max Cut Depth - 1.5xD
- Shank Form - A
- x - als
- Type - Straight Flute
- Thread Form - UNC
- Lead - Set
| Model Number | M2190794 |
|---|---|
| gtin | 9311963020242 |
| Brand | Sutton |
