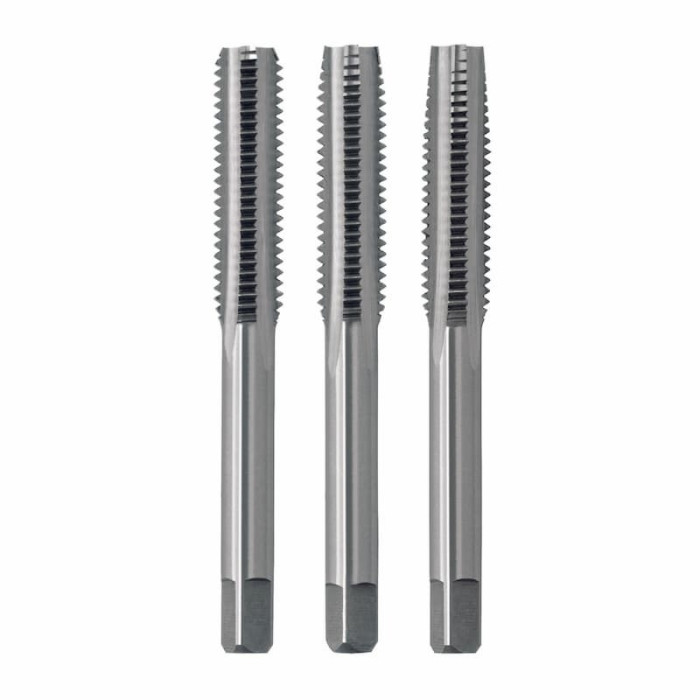

Hand Taps M3 x 0.50 Set - 3 Piece
$47.91
SKU
M2030300
Barcode
9311963021775
Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical. Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping. Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter. Set comprises 1 each – taper, intermediate & bottoming leads.
Sutton Tools M2030300 Hand Taps M3 x 0.50 Set - 3 Piece
Features:
- Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter.
- Set Includes:
- Taper lead: suitable for starting a thread.
- Intermediate lead: used after a taper lead and are suitable for through holes.
- Bottoming lead: used after a taper lead and are suitable for blind holes.
- Square shank for use with a suitable tap wrench to drive the tap.
- Made from tungsten chrome alloy.
- Bright finish for general purpose applications, non-ferrous metals & plastics.
Specifications:
- Drill ∅ - 2.5mm
- Pitch - 0.50
- Size - M3
- Designation - N
- Material - TCA
- Finish - Brt
- Max Cut Depth - 1.5xD
- Shank Form - A
- x - als
- Type - Straight Flute
- Thread Form - M
- Lead - Set
| Model Number | M2030300 |
|---|---|
| gtin | 9311963021775 |
| Brand | Sutton |
