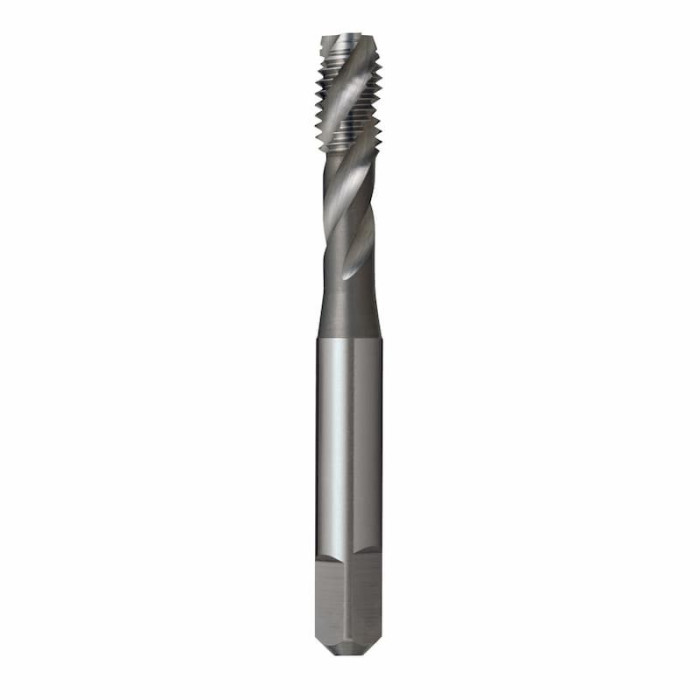

Tap Spiral Flute 3/8" x 16TPI HSS UNC
$59.90
SKU
T4250953
Barcode
9311963004747
General purpose use. Suitable for materials up to 1000N/mm2. Blind holes. Depths up to approx. 2.5 x d1.
Sutton Tools T4250953 Tap Spiral Flute 3/8" x 16TPI HSS UNC
Features:
- General purpose use
- Suitable for materials up to 1000N/mm2
- Blind holes
- Depths up to approx. 2.5 x d1
Specifications:
- Size -
- d1 - 3/8"
- TPI - 16
- Limit - 2B
- l1 - 80mm
- l2 - 16mm
- d2 - 10mm
- sq - 8mm
- l4 - 11mm
- z - 3mm
- Drill Ø - 8mm
- Designation - N
- Material - HSSE V3
- Finish - Brt
- Max Cut Depth - 2.5xD
- Shank Form - A
- Helix Angle - R40
- x - als
- Type - Spiral Flute
- Standard - ISO529
- Thread Form - UNC
- Nut Tolerance - 2B
- Lead - Form C / 3 x P
| Model Number | T4250953 |
|---|---|
| gtin | 9311963004747 |
| Brand | Sutton |
