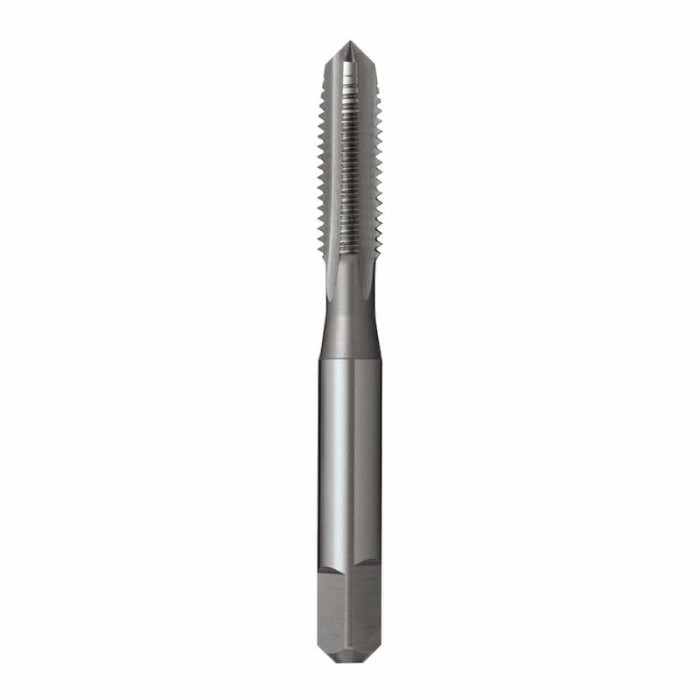

Tap Straight Flute M14 x 2.0mm HSS Intermediate

$66.00
SKU
T3851400
Barcode
9311963009643

Straight flute taps are general purpose taps designed for cutting threads in pre-drilled holes. They can be used in cutting threads in through or blind holes. A thread is started using a taper tap with a subtle diameter transition for minimal torque requirement. An intermediate tap is then used to complete the thread and then a bottoming tap is used for finishing threads, especially in blind holes.

Sutton Tools T3851400 Tap Straight Flute M14 x 2.0mm HSS Intermediate

Features:

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications:

  • d1 - M14
  • Limit - ISO 2 / 6H
  • l1 - 95
  • l2 - 30
  • d2 - 11.2
  • sq - 9
  • l4 - 12
  • z - 4
  • Drill Ø - 12
  • Pitch - 2.00
More Information
Model NumberT3851400
gtin9311963009643
BrandSutton
