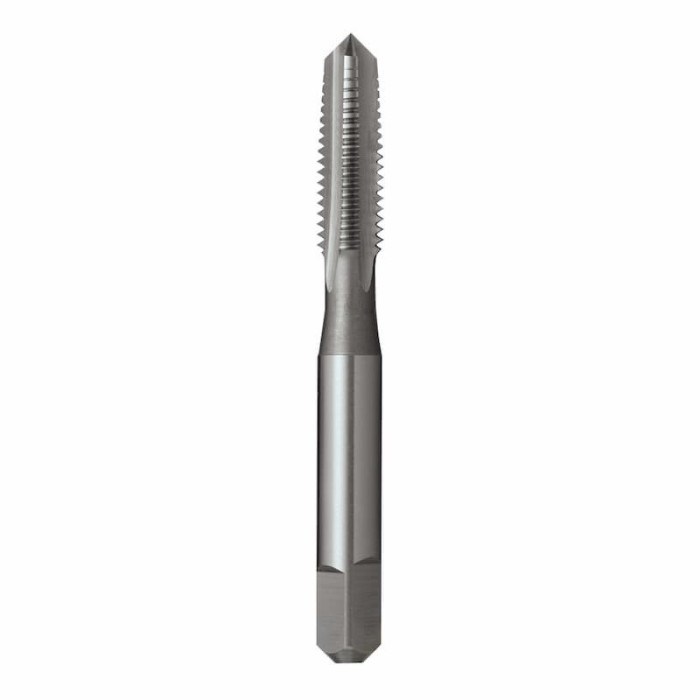

Tap Straight Flute M2.5 x 0.45 HSS Taper

Sutton Tools T3840250 Tap Straight Flute M2.5 x 0.45 HSS Taper

Features:

• General purpose use
• Suitable for materials up to 1000N/mm2
• Suitable for both hand and machine operations
• Depths up to approx. 1 x d1

Specifications:

• Size -
  • d1 - M2.5
  • Limit - ISO2 / 6H
  • l1 - 45mm
  • l2 - 10mm
  • d2 - 2.8mm
  • sq - 2.24mm
  • l4 - 5mm
  • z - 3mm
  • Drill Ø - 2.05mm
  • Pitch - 0.45
• Designation - N
• Material - HSS
• Finish - Brt
• Max Cut Depth - 1xD
• Shank Form - A
• x - als
• Type - Straight Flute
• Standard - ISO529
• Thread Form - M
• Nut Tolerance - ISO 2 / 6H
• Lead - Taper
