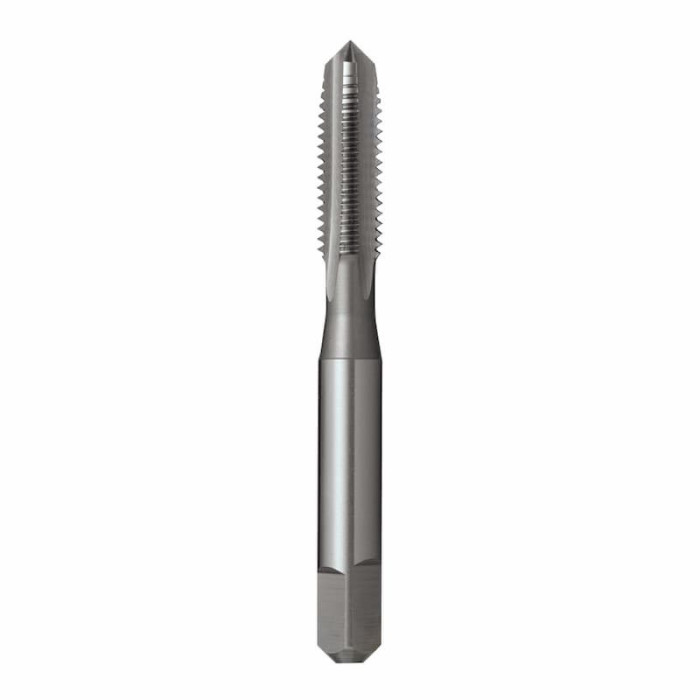

Tap Straight Flute M20 x 1.50 MF Intermediate

Sutton Tools T4022007 Tap Straight Flute M20 x 1.50 MF Intermediate

Features:

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Suitable for both hand and machine operations
• Depths up to approx. 1 x d1

Specifications:

• Size -
  • d1 - MF20
  • Limit - ISO 2/6H
  • l1 - 112mm
  • l2 - 37mm
  • d2 - 14mm
  • sq - 11.2mm
  • l4 - 14mm
  • z - 4mm
  • Drill ∅ - 18.5mm
  • Pitch - 1.50
• Designation - N
• Material - HSS
• Finish - Brt
• Max Cut Depth - 1xD
• Shank Form - A
• x - als
• Type - Straight Flute
• Standard - ISO529
• Thread Form - MF
• Nut Tolerance - ISO 2 / 6H
• Lead - Intermediate
