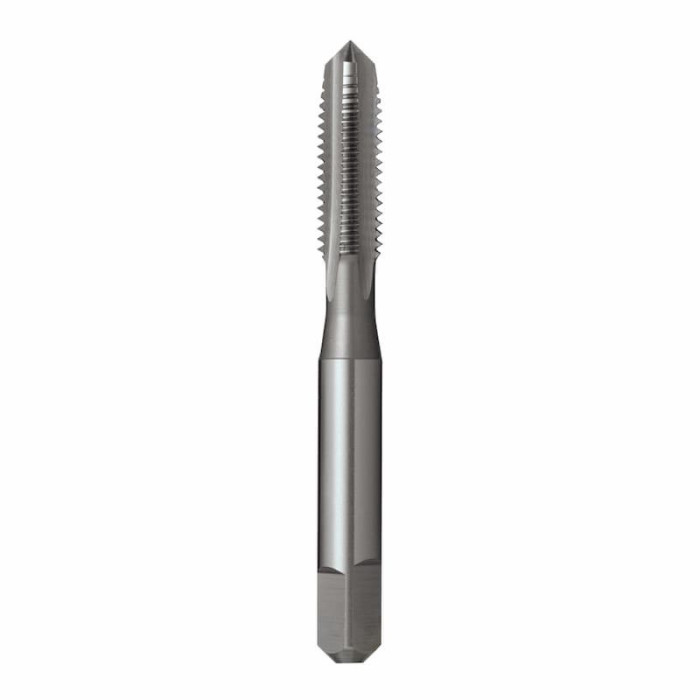

Tap Straight Flute M20 x 2.5mm HSS Intermediate

$137.01
SKU
T3852000
Barcode
9311963004518

Straight flute taps are general purpose taps designed for cutting threads in pre-drilled holes. They can be used in cutting threads in through or blind holes. A thread is started using a taper tap with a subtle diameter transition for minimal torque requirement. An intermediate tap is then used to complete the thread and then a bottoming tap is used for finishing threads, especially in blind holes.

Sutton Tools T3852000 Tap Straight Flute M20 x 2.5mm HSS Intermediate

Features:

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications:

  • d1 - M20
  • Limit - ISO 2 / 6H
  • l1 - 112
  • l2 - 37
  • d2 - 14
  • sq - 11.2
  • l4 - 14
  • z - 4
  • Drill Ø - 17.5
  • Pitch - 2.50
More Information
Model NumberT3852000
gtin9311963004518
BrandSutton
