Tap Straight Flute M24 x 3.0mm HSS Intermediate

$189.00
SKU
T3852400
Barcode
9311963009216

Straight flute taps are general purpose taps designed for cutting threads in pre-drilled holes. They can be used in cutting threads in through or blind holes. A thread is started using a taper tap with a subtle diameter transition for minimal torque requirement. An intermediate tap is then used to complete the thread and then a bottoming tap is used for finishing threads, especially in blind holes.

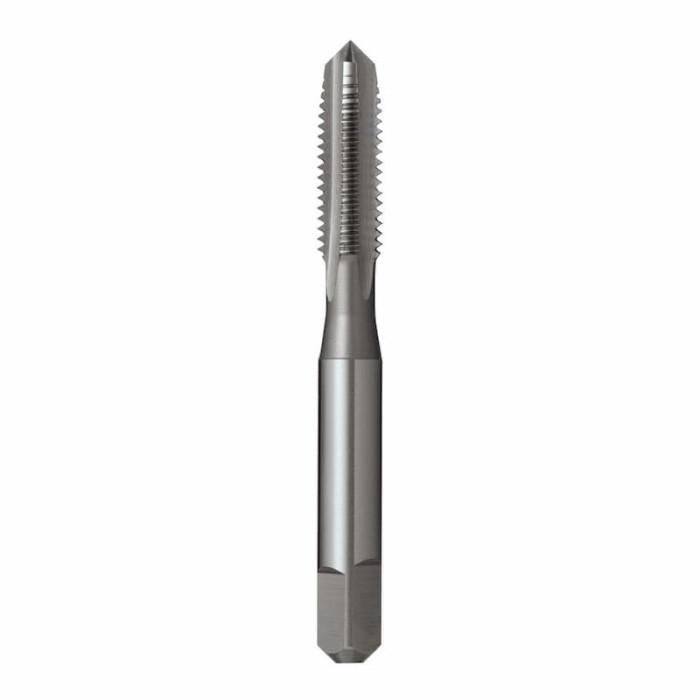

Sutton Tools T3852400 Tap Straight Flute M24 x 3.0mm HSS Intermediate

Features:

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications:

  • d1 - M24
  • Limit - ISO 2 / 6H
  • l1 - 130
  • l2 - 45
  • d2 - 18
  • sq - 14
  • l4 - 18
  • z - 4
  • Drill Ø - 21
  • Pitch - 3.00
More Information
Model NumberT3852400
gtin9311963009216
BrandSutton
