Tap Straight Flute #5 x 40TPI HSS UNC Bottoming

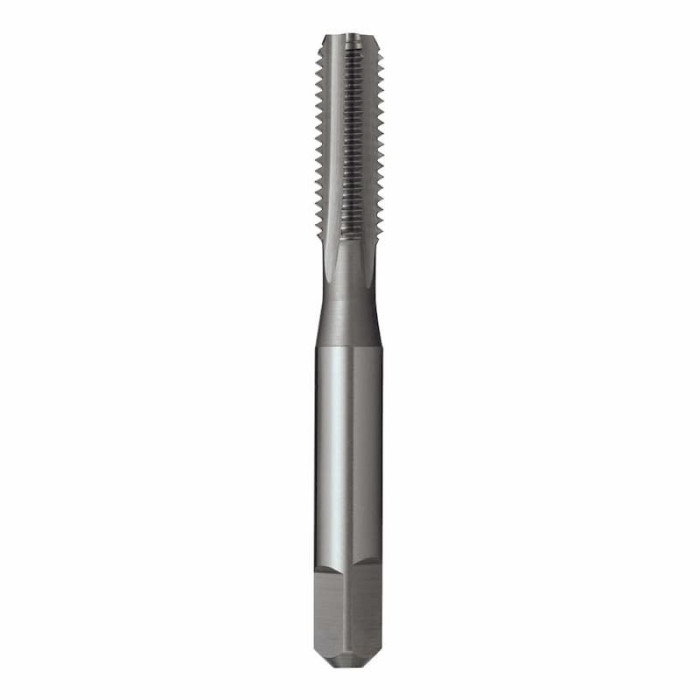

Sutton Tools T4160318 Tap Straight Flute #5 x 40TPI HSS UNC Bottoming

Features:

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Suitable for both hand and machine operations
• Depths up to approx. 1 x d1

Specifications:

• Size -
  • d1 - #5
  • TPI - 40
  • Limit - 2B
  • l1 - 48mm
  • l2 - 15mm
  • d2 - 3.15mm
  • sq - 2.5mm
  • l4 - 5mm
  • z - 3mm
  • Drill Ø - 2.6mm
• Designation - N
• Material - HSS
• Finish - Brt
• Max Cut Depth - 1xD
• Shank Form - A
• x - als
• Type - Straight Flute
• Standard - ISO529
• Thread Form - UNC
• Nut Tolerance - 2B
• Lead - Bottoming
