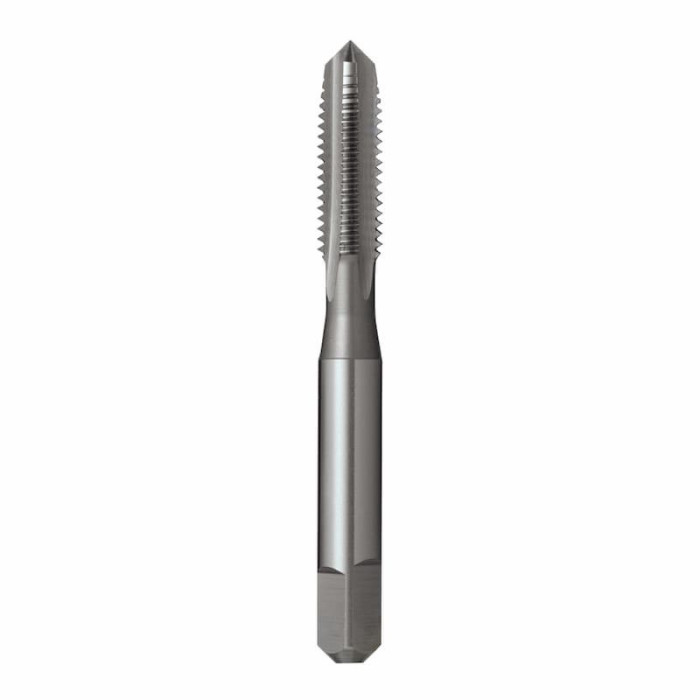

Tap Straight Flute M22 x 2.5mm HSS Intermediate
$159.01
SKU
T3852200
Barcode
9311963027975
Straight flute taps are general purpose taps designed for cutting threads in pre-drilled holes. They can be used in cutting threads in through or blind holes. A thread is started using a taper tap with a subtle diameter transition for minimal torque requirement. An intermediate tap is then used to complete the thread and then a bottoming tap is used for finishing threads, especially in blind holes.
Sutton Tools T3852200 Tap Straight Flute M22 x 2.5mm HSS Intermediate
Features:
- General purpose use
- Suitable for materials up to 1000N/mm2
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
Specifications:
- d1 - M22
- Limit - ISO 2 / 6H
- l1 - 118
- l2 - 38
- d2 - 16
- sq - 12.5
- l4 - 16
- z - 4
- Drill Ø - 19.5
- Pitch - 2.50
| Model Number | T3852200 |
|---|---|
| gtin | 9311963027975 |
| Brand | Sutton |
