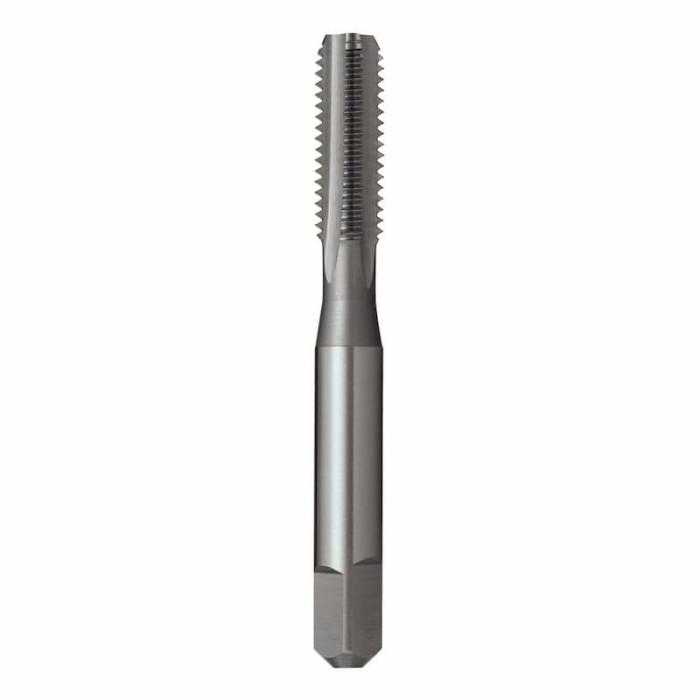

Tap Straight Flute M3.5 x 0.6mm HSS Bottoming
$27.90
SKU
T3860350
Barcode
9311963025827
Metric straight flute taps are general purpose taps designed for cutting threads in pre-drilled holes. They can be used in cutting threads in through or blind holes. A thread is started using a taper tap with a subtle diameter transition for minimal torque requirement. An intermediate tap is then used to complete the thread and then a bottoming tap is used for finishing threads, especially in blind holes.
Sutton Tools T3860350 Tap Straight Flute M3.5 x 0.6mm HSS Bottoming
Features:
- General purpose use
- Suitable for materials up to 1000N/mm2
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
Specifications:
- Size -
- d1 - M3.5
- Limit - ISO 2 / 6H
- l1 - 50mm
- l2 - 13mm
- d2 - 3.55mm
- sq - 2.8mm
- l4 - 5mm
- z - 3mm
- Drill Ø - 2.9mm
- Pitch - 0.60mm
- Designation - N
- Material - HSS
- Finish - Brt
- Max Cut Depth - 1xD
- Shank Form - A
- x - als
- Type - Straight Flute
- Standard - ISO529
- Thread Form - M
- Nut Tolerance - ISO 2 / 6H
- Lead - Bottoming
| Model Number | T3860350 |
|---|---|
| gtin | 9311963025827 |
| Brand | Sutton |
