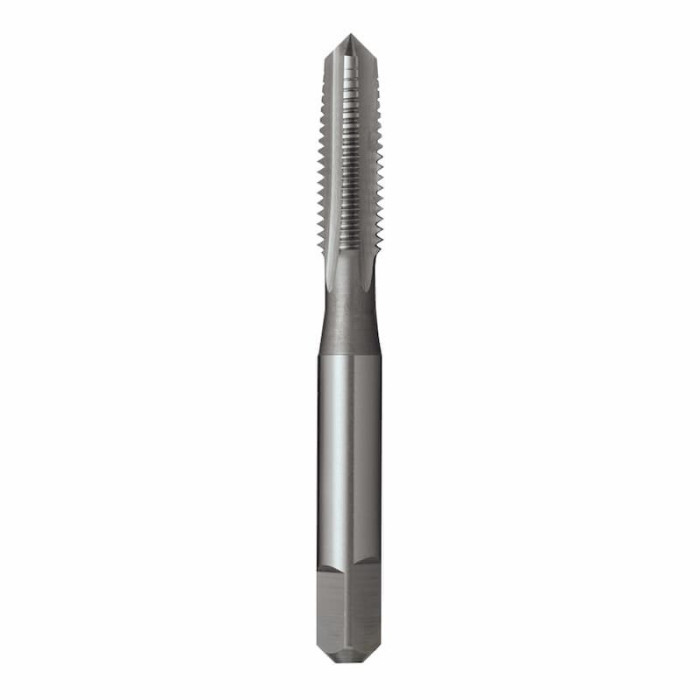

Hand Tap MF32 x 1.50 Straight Flute HSS Taper

Sutton Tools T4013207 Hand Tap MF32 x 1.50 Straight Flute HSS Taper

Features:

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Suitable for both hand and machine operations
• Depths up to approx. 1 x d1

Specifications:

• Size:
  • d1 - MF32
  • Limit - ISO 2/6H
  • l1 - 151mm
  • l2 - 51mm
  • d2 - 22.4mm
  • sq - 18mm
  • l4 - 22mm
  • z - 4mm
  • Drill Ø - 30.5mm
  • Pitch - 1.50
• Designation - N
• Material - HSS
• Finish - Brt
• Max Cut Depth - 1xD
• Shank Form - A
• x - als
• Type - Straight Flute
• Standard - ISO529
• Thread Form - MF
• Nut Tolerance - ISO 2 / 6H
• Lead - Taper
