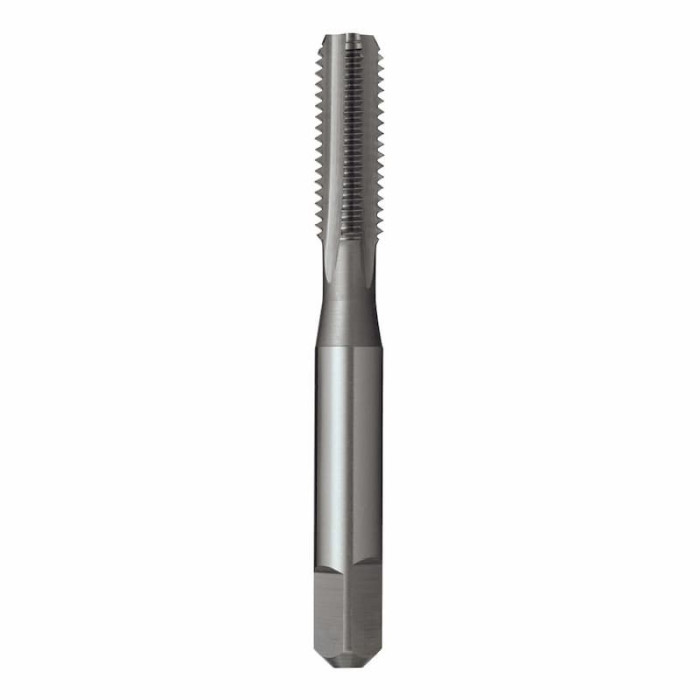

Tap Straight Flute M4.5 x 0.75mm HSS Bottoming
$29.90
SKU
T3860450
Barcode
9311963027951
Metric straight flute taps are general purpose taps designed for cutting threads in pre-drilled holes. They can be used in cutting threads in through or blind holes. A thread is started using a taper tap with a subtle diameter transition for minimal torque requirement. An intermediate tap is then used to complete the thread and then a bottoming tap is used for finishing threads, especially in blind holes.
Sutton Tools T3860450 Tap Straight Flute M4.5 x 0.75mm HSS Bottoming
Features:
- General purpose use
- Suitable for materials up to 1000N/mm2
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
Specifications:
- Size -
- d1 - M4.5
- Limit - ISO 2 / 6H
- l1 - 53mm
- l2 - 13mm
- d2 - 4.5mm
- sq - 3.55mm
- l4 - 6mm
- z - 3mm
- Drill Ø - 3.7mm
- Pitch - 0.75mm
- Designation - N
- Material - HSS
- Finish - Brt
- Max Cut Depth - 1xD
- Shank Form - A
- x - als
- Type - Straight Flute
- Standard - ISO529
- Thread Form - M
- Nut Tolerance - ISO 2 / 6H
- Lead - Bottoming
| Model Number | T3860450 |
|---|---|
| gtin | 9311963027951 |
| Brand | Sutton |
