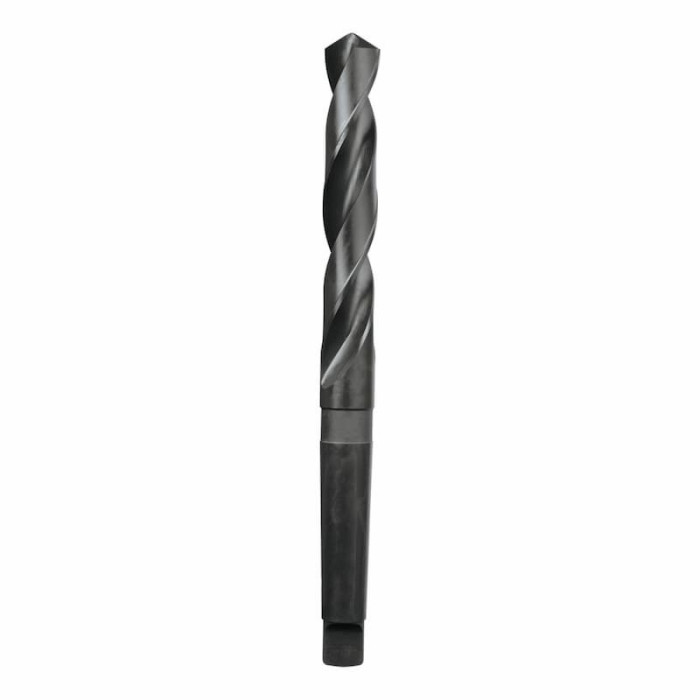

Drill Bit 14.0mm x 189mm Morse Taper Shank
$79.00
SKU
D1151400
Barcode
9311963002163
Twist drill with Morse taper shank suitable for a variety of materials and industrial applications. The tang at the end of the shank is used for ejecting the drill from the socket or sleeve. The drive and alignment is derived from the taper lock.
Sutton Tools D1151400 Drill Bit 14.0mm x 189mm Morse Taper Shank
Features:
- General purpose HSS drill
- Suitable for materials up to 900N/mm²
Specifications:
- Size -
- d1 (mm) - 14.0mm
- l1 - 189mm
- l2 - 108mm
- d2 - MT#1
- Designation - N
- Material - HSS
- Finish - Blu
- Max Cut Depth - 5xD
- Shank Form - MTS
- Helix Angle - R30
- x - als
- Point Tolerance - h8
- Point Angle - 118°
- Point Form - Form A
- Cutting Edges - ul
- Standard - DIN345
| Model Number | D1151400 |
|---|---|
| gtin | 9311963002163 |
| Brand | Sutton |
