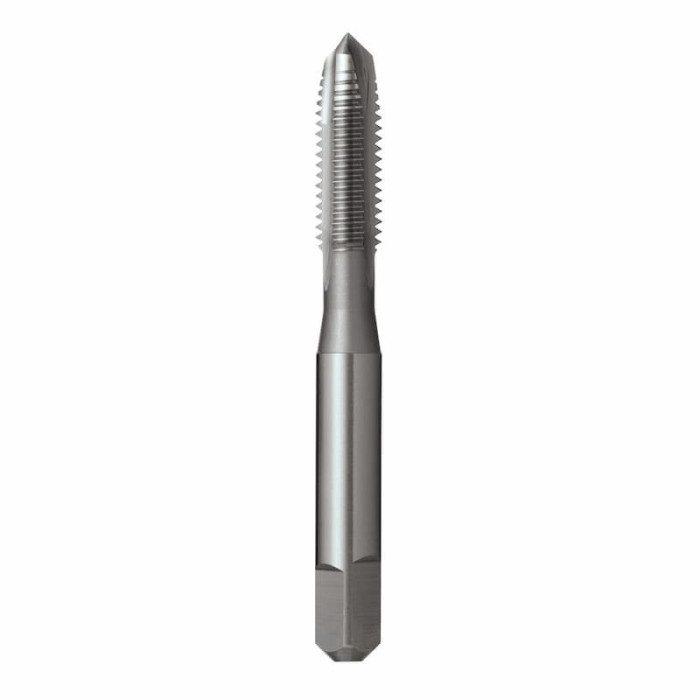

Tap Spiral Point (Gun) 3/16" x 24TPI BSW Z3 Intermediate

Sutton Tools T4570476 Tap Spiral Point (Gun) 3/16" x 24TPI BSW Z3 Intermediate

Features:

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through holes
• Depths up to approx. 3 x d1

Specifications:

• Size -
  • d1 - 3/16"
  • TPI - 24
  • Limit - Z3
  • l1 - 58mm
  • l2 - 16mm
  • d2 - 5mm
  • sq - 4mm
  • l4 - 7mm
  • z - 3mm
  • Drill Ø - 3.7mm
• Designation - N
• Material - HSSE V3
• Finish - Brt
• Max Cut Depth - 3xD
• Shank Form - A
• x - als
• Type - Spiral Point (Gun)
• Standard - ISO529
• Thread Form - BSW
• Nut Tolerance - Z3 Medium
• Lead - Form B / 4.5 x P
