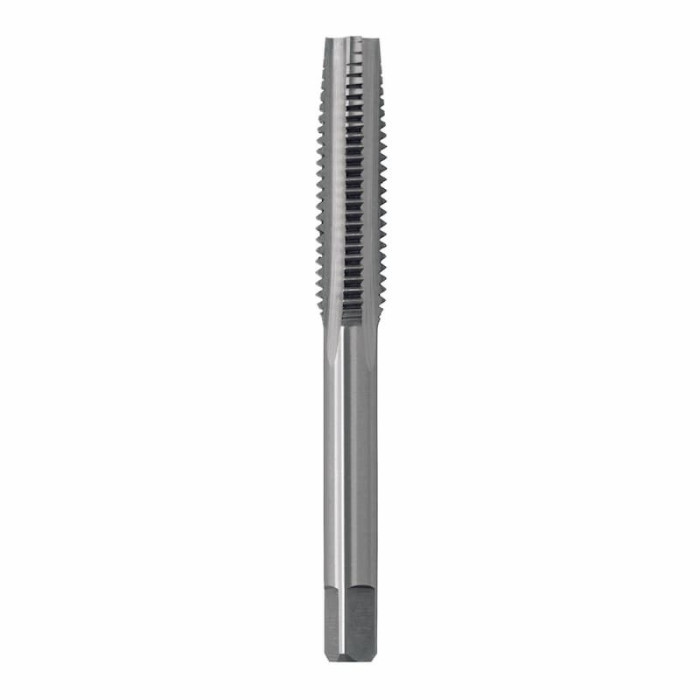

Hand Tap M10 x 1.50 Taper Carbon
$16.90
SKU
M2001000
Barcode
9311963017518
Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical. Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping. Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.
Sutton Tools M2001000 Hand Tap M10 x 1.50 Taper Carbon
Features:
- Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter.
- Taper lead: for starting a thread prior to using a intermediate or bottoming lead tap.
- Square shank for use with a suitable tap wrench to drive the tap.
- Made from tungsten chrome alloy.
- Bright finish for general purpose applications, non-ferrous metals & plastics.
Specifications:
- Drill ∅ - 8.5mm
- Pitch - 1.50
- Size - M10
- Designation - N
- Material - TCA
- Finish - Brt
- Max Cut Depth - 1.5xD
- Shank Form - A
- x - als
- Type - Straight Flute
- Thread Form - M
- Lead - Taper
| Model Number | M2001000 |
|---|---|
| gtin | 9311963017518 |
| Brand | Sutton |
