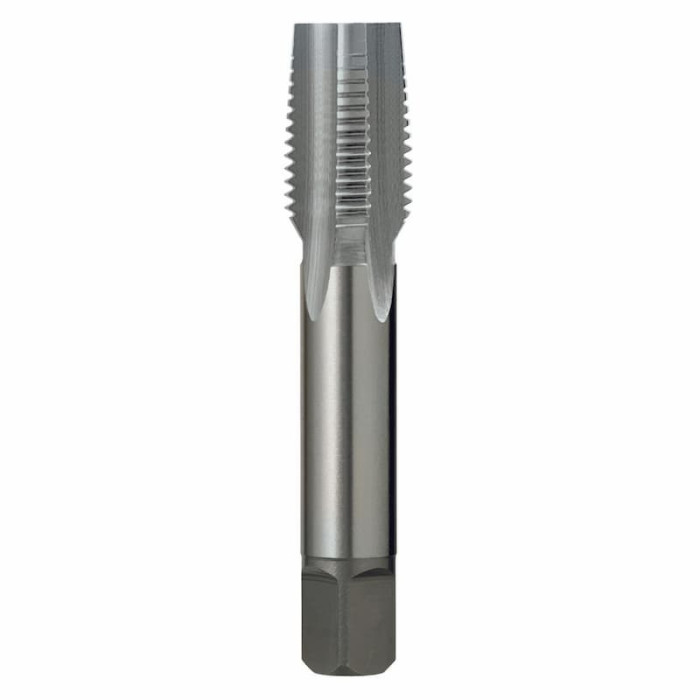

Tap Straight Flute "G" 1/4" x 19TPI HSS (BSPF) Taper

Sutton Tools T4791316 Tap Straight Flute "G" 1/4" x 19TPI HSS (BSPF) Taper

Features:

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Suitable for both hand and machine operations
• Depths up to approx. 1 x d1

Specifications:

• Size -
  • d1 - G 1/4"
  • TPI - 19
  • Limit - Z3
  • l1 - 67mm
  • l2 - 19mm
  • d2 - 10mm
  • sq - 8mm
  • l4 - 11mm
  • z - 4mm
  • Drill Ø - 11.8mm
• Designation - N
• Material - HSS
• Finish - Brt
• Max Cut Depth - 1xD
• Shank Form - A
• x - als
• Type - Straight Flute
• Standard - ISO2284
• Thread Form - G (BSPF)
• Nut Tolerance - Z3
• Lead - Taper
