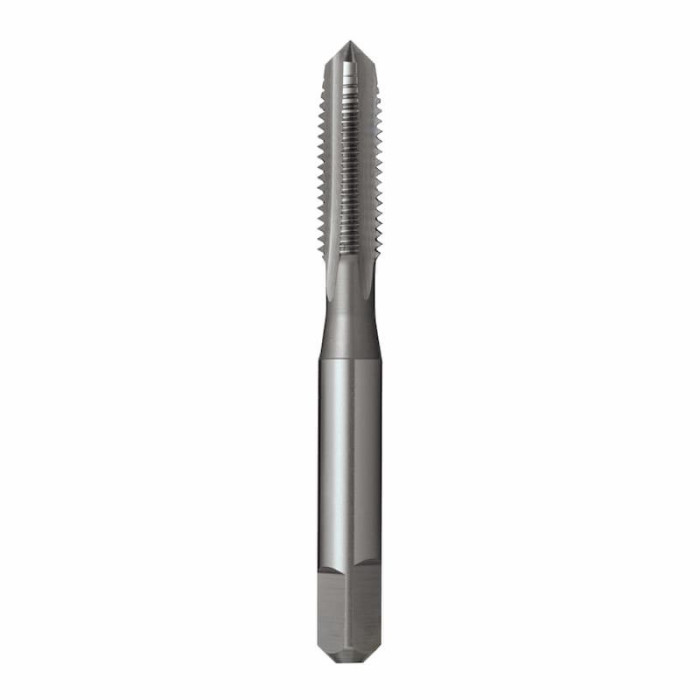

Tap Straight Flute M10 x 1.5mm HSS Intermediate

$36.91
SKU
T3851000
Barcode
9311963001722

Straight flute taps are general purpose taps designed for cutting threads in pre-drilled holes. They can be used in cutting threads in through or blind holes. A thread is started using a taper tap with a subtle diameter transition for minimal torque requirement. An intermediate tap is then used to complete the thread and then a bottoming tap is used for finishing threads, especially in blind holes.

Sutton Tools T3851000 Tap Straight Flute M10 x 1.5mm HSS Intermediate

Features:

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications:

  • d1 - M10
  • Limit - ISO 2 / 6H
  • l1 - 80
  • l2 - 24
  • d2 - 10
  • sq - 8
  • l4 - 11
  • z - 4
  • Drill Ø - 8.5
  • Pitch - 1.50
More Information
Model NumberT3851000
gtin9311963001722
BrandSutton
