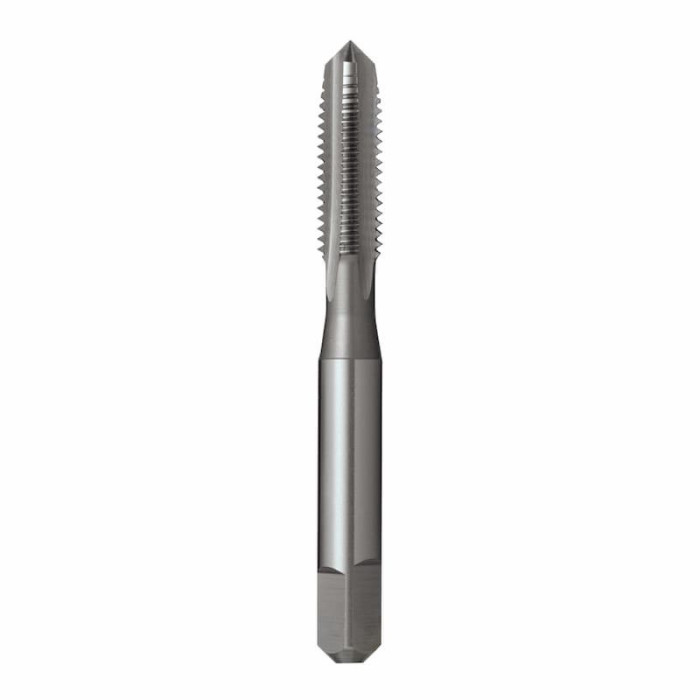

Tap Straight Flute M12 x 1.75mm HSS Intermediate

$51.90
SKU
T3851200
Barcode
9311963002323

Straight flute taps are general purpose taps designed for cutting threads in pre-drilled holes. They can be used in cutting threads in through or blind holes. A thread is started using a taper tap with a subtle diameter transition for minimal torque requirement. An intermediate tap is then used to complete the thread and then a bottoming tap is used for finishing threads, especially in blind holes.

Sutton Tools T3851200 Tap Straight Flute M12 x 1.75mm HSS Intermediate

Features:

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications:

  • d1 - M12
  • Limit - ISO 2 / 6H
  • l1 - 89
  • l2 - 29
  • d2 - 9
  • sq - 7.1
  • l4 - 10
  • z - 4
  • Drill Ø - 10.2
  • Pitch - 1.75
More Information
Model NumberT3851200
gtin9311963002323
BrandSutton
