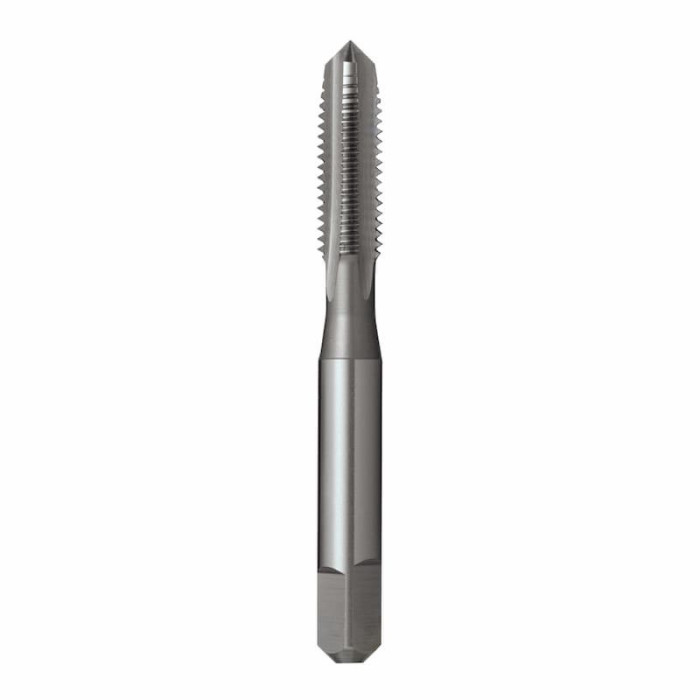

Tap Straight Flute M4 x 0.7mm HSS Intermediate
$24.90
SKU
T3850400
Barcode
9311963001586
Straight flute taps are general purpose taps designed for cutting threads in pre-drilled holes. They can be used in cutting threads in through or blind holes. A thread is started using a taper tap with a subtle diameter transition for minimal torque requirement. An intermediate tap is then used to complete the thread and then a bottoming tap is used for finishing threads, especially in blind holes.
Sutton Tools T3850400 Tap Straight Flute M4 x 0.7mm HSS Intermediate
Features:
- General purpose use
- Suitable for materials up to 1000N/mm2
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
Specifications:
- d1 - M4
- Limit - ISO 2 / 6H
- l1 - 53
- l2 - 13
- d2 - 4
- sq - 3.15
- l4 - 6
- z - 3
- Drill Ø - 3.3
- Pitch - 0.70
| Model Number | T3850400 |
|---|---|
| gtin | 9311963001586 |
| Brand | Sutton |
