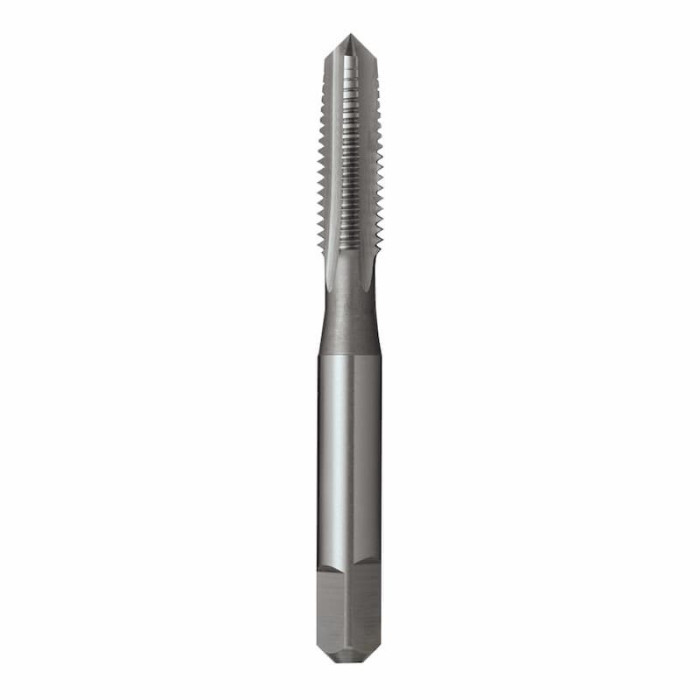

Tap Straight Flute M4 x 0.70 HSS Taper
$24.90
SKU
T3840400
Barcode
9311963001890
General purpose use. Suitable for materials up to 1000N/mm2. Suitable for both hand and machine operations. Depths up to approx. 1 x d1.
Sutton Tools T3840400 Tap Straight Flute M4 x 0.70 HSS Taper
Features:
- General purpose use
- Suitable for materials up to 1000N/mm2
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
Specifications:
- Size -
- d1 - M4
- Limit - ISO2 / 6H
- l1 - 53mm
- l2 - 13mm
- d2 - 4mm
- sq - 3.15mm
- l4 - 6mm
- z - 3mm
- Drill Ø - 3.3mm
- Pitch - 0.70
- Designation - N
- Material - HSS
- Finish - Brt
- Max Cut Depth - 1xD
- Shank Form - A
- x - als
- Type - Straight Flute
- Standard - ISO529
- Thread Form - M
- Nut Tolerance - ISO 2 / 6H
- Lead - Taper
| Model Number | T3840400 |
|---|---|
| gtin | 9311963001890 |
| Brand | Sutton |
