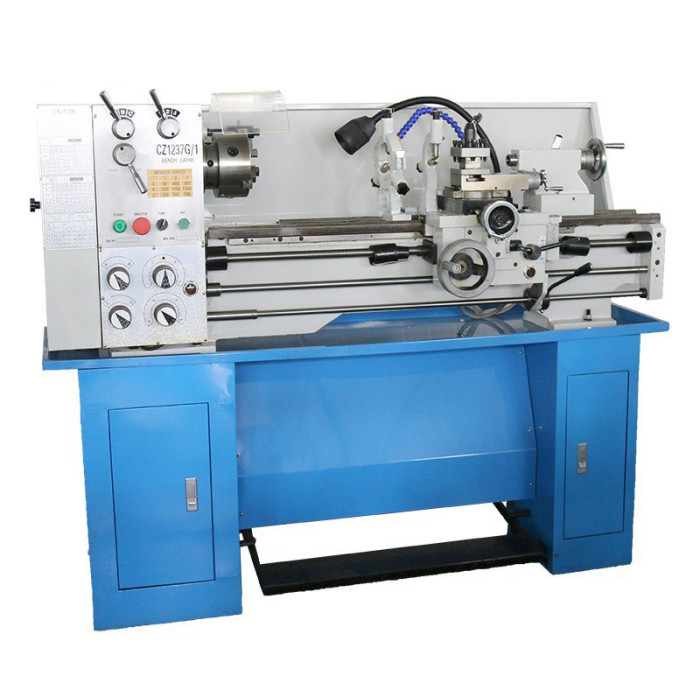

Bench Lathe 305 x 940mm includes Cabinet Stand
$5,699.00
SKU
512690
Barcode
9312605126902
Bench lathes are especially suitable for machining workshops, tool rooms and repairing workshops to machine shafts, sleeves and disc work-pieces of middle or small sizes. They can also be used to cut imperial, diameter and module threads. Compact construction and reasonable composition, they are easy and reliable to operate. Convenient to repair, high in efficiency and low in noise. Hardened with supersonic frequency heat-treatment, the bed sliding and gears are wear resistant.
Toolex 512690 Bench Lathe 305 x 940mm includes Cabinet Stand
Features:
- Engineered from high grade castings
- 4-handles gearbox
- V-way bedways induction hardened and ground
- Cross and longitudinal interlocking feed
- ASA D4 cam-lock spindle nose
- Various thread cutting functions
Specifications:
- Swing over bed - 305mm
- Swing over gap - 440mm
- Swing over saddle - 173mm
- Distance between centres - 940mm
- Length of bed - 1473mm
- Width of bed - 182mm
- Hole through spindle - 38mm
- Tailstock barrel travel - 92mm
- Cross slide travel - 150mm
- Tool slide travel - 85mm
- Saddle travel - 850mm
- Taper of spinle hole - M.T.5
- Taper of tailstock barrel - M.T.3
- Range of spindle speed - 9 steps (64 - 1500 RPM)
- Diameter of lead screw - 22mm
- Diameter of feed rod - 19mm
- Thread of lead screw - 8 TPI (3mm)
- Thread can be cut -
- Inch - 34 kinds (4-56 TPI)
- Metric - 26 Kinds (0.4 - 7mm)
- Motor Power - 1.1Kw
- Net Weight -
- Including Stand - 450kg
- Without Stand - 390kg
- Packing Size -
- Without Stand - 1780 x 750 x 760mm
- Stand - 720 x 300 x 700mm
- Noise - <83dB
- Power - 220V/Single Phase/50 Cycle
Standard Accessories:
- Instruction Manual
- Tool Post Wrench
- Double Ended Wrench (14/17mm)
- 5x Allen Wrench (3/4/5/6/8mm)
- Screwdriver (6x100)
- Centre M.T.3
- Centre Sleeve M.T.5/M.T.3
- Oil Gun
- Follow Rest
- Steady Rest
- Change Gears
- Three Jaw Chuck
- Tool Box
| Model Number | 512690 |
|---|---|
| gtin | 9312605126902 |
| Brand | Toolex |
