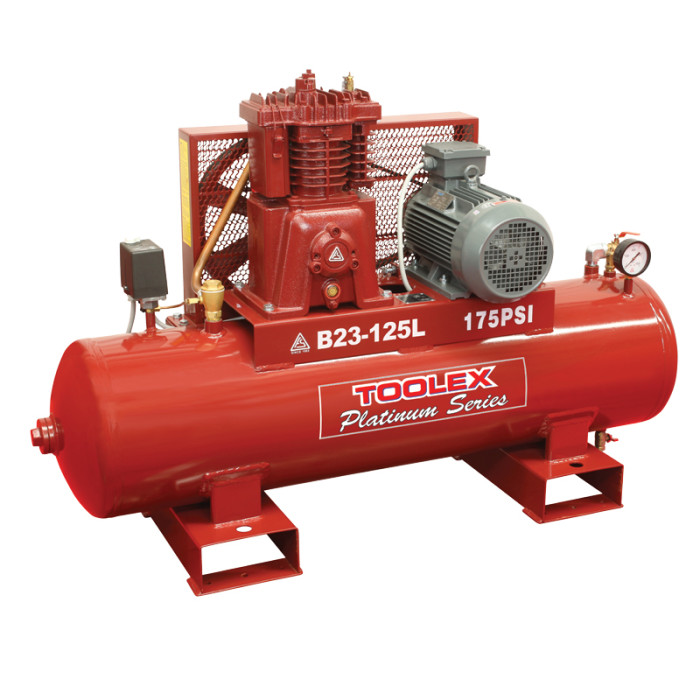

415V Air Compressor 4Hp B23-125L 125L Tank Fusheng Pump B1 2-Stage 175Psi
$3,589.00
SKU
598469
Barcode
9312605984694
Genuine Fusheng reciprocating air compressor pump low speed, single stage, full cast iron construction with a worldwide reputation for outstanding performance and reliability. Well proven in Australia for more than 25 years
Toolex 598469 415V Air Compressor 4Hp B23-125L 125L Tank Fusheng Pump B1 2-Stage 175Psi
Features:
- Air compressor 4 HP 415V B23-125L Model
- Platinum series electric powered B-1 Fusheng Pump
- High Pressure 175Psi
- 125L tank with feet
- Slow revving, Low noise
- Genuine Fusheng reciprocating air compressor pump low speed, single stage, full cast iron construction with a worldwide reputation for outstanding performance and reliability. Well proven in Australia for more than 25 years
- Superior pump design with a high strength forges steel crankshaft, low friction roller main bearings, extra-large oil reservoir, long life piston rings, precision machined cylinders, deep directional cooling fins, robust plate type inlet and exhaust valves, and low noise air intakes with replaceable filter elements.
- Fully automated motor control provided by a precision German made condor pressure switch fitted with a soft-start unloader valve
- Extended service life belt drive fully enclosed by an impact resistant metal safety guard designed for easy maintenance access and high flow-through cooling machined steel baseplate facilities accurate pump and motor alignment
- Oversized air receiver tank designed verified in accordance with Australian standards AS1210.
- Stationary sets are mounted on pallet feet for quick and safe handling with a forklift
- Fully compliant with Australian safety standards and regulations for the industrial workplace
- 2 year parts and factory (not on site) labour warranty (excluding the motor which is covered by a 12 month warranty) supplemented by an Australian wide dealer network offering sales, service and genuine spare parts back up.
Specifications:
- Displacement CFM: 13.8
- Displace ltrs/min: 390
- Free air CFM: 11.5
- Free air ltrs/min: 325
- Receiver dimensions: 1260mm L x 350mm dia
- Receiver capacity: 125ltrs
- Maximum pressure: 175psi / 3000 watts 4hp
- Power supply: 415 volt / 3 phase teco electric motor
- Require 10amp 3 Phase Supply
- Pump speed: 990 rpm
- Total weight: 172 kg
- Max height: 950mm
- 2 Cylinder 2 Stage Pump
| Model Number | 598469 |
|---|---|
| gtin | 9312605984694 |
| Brand | Fusheng |
