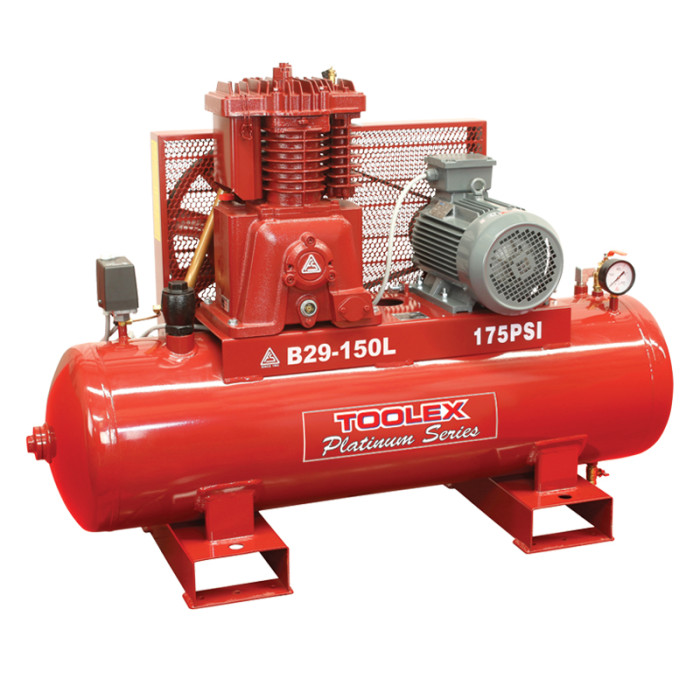

415V Air Compressor 5.5Hp B29-150L 150L Tank Fusheng Pump B2 2-Stage 175Psi

Toolex 598470 415V Air Compressor 5.5Hp B29-150L 150L Tank Fusheng Pump B2 2-Stage 175Psi

Features:

• Air compressor 5.5HP 415V B29-125L Model
• Platinum series electric powered B-2 Pump High Pressure 175Psi
• 150L tank with feet
• Slow revving, Low noise
• Superior pump design with a high strength forges steel crankshaft, low friction roller main bearings, extra-large oil reservoir, long life piston rings, precision machined cylinders, deep directional cooling fins, robust plate type inlet and exhaust valves, and low noise air intakes with replaceable filter elements.
• Fully automated motor control provided by a precision German made condor pressure switch fitted with a soft-start unloader valve
• Extended service life
• Belt drive fully enclosed by an impact resistant metal safety guard designed for easy maintenance access and high flow-through cooling machined steel baseplate facilities accurate pump and motor alignment
• Oversized air receiver tank designed verified in accordance with Australian standards AS1210.
• Stationary sets are mounted on pallet feet for quick and safe handling with a forklift
• Fully compliant with Australian safety standards and regulations for the industrial workplace
• 2 year parts and factory (not on site) labour warranty (excluding the motor which is covered by a 12 month warranty)

>Specifications:

• Displacement CFM: 22.8
• Displace ltrs/min: 645
• Free air CFM: 19.6
• Free air ltrs/min: 555
• Receiver dimensions: 1260mm L x 390mm dia
• Receiver capacity: 150ltrs
• Maximum pressure: 175psi / 4000 watts 5.5 hp
• Power supply: 415 volt / 3 phase teco electric motor
• Require 16amp 3 Phase Supply
• Pump speed: 950rpm
• Total weight: 265 kg
• Max height: 1060mm
• 2 Cylinder 2 Stage Pump
