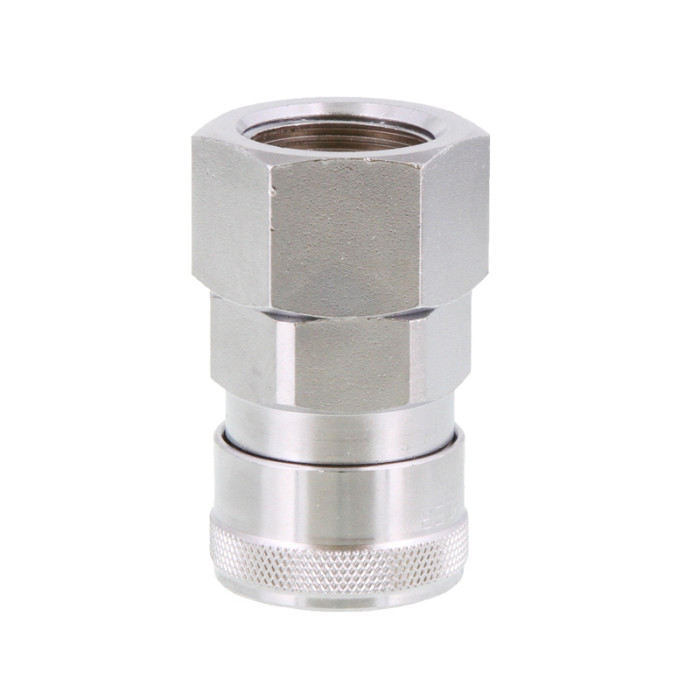

Quick Connect Coupling 3/4" Female Hydraulic

Toolex 511282 Quick Connect Coupling 3/4" Female Hydraulic

Features:

• Zinc plated steel Quick Action and Flush Face couplings fitted with NBR (Nitrile) seals.
• BSPP Thread sizes
• Interchangeable couplings
• Connects and disconnects by pulling back on the external sleeve
• Applications include agricultural, hydraulic, mobile, construction equipment or in-plant machinery
• Temperature range: -40 to +110°C

Specifications:

• Compatible With - ISO 7241-1-A
• Type - Union
• Coupling Gender - Female
• Locking Style - Ball Lock
• Thread - G 3/4 Female
• Material - Steel
• Finish - Chrome
• Seal Material - Nitrile Rubber
• Thread Size - 3/4in
• Thread Standard - G
• Thread Gender - Female
• Maximum Operating Pressure - 28 MPa
• Maximum Operating Temperature - +110°C
• Minimum Operating Temperature - -30°C
